SCR Rated Gearmotors
To provide greater flexibility and compatibility with unfiltered SCR controls, Bodine Electric Company now offers a new selection of 90V and 180VDC gearmotors with a maximum rated armature speed of 2500 rpm. These gearmotors are designed for “hybrid” applications that neither match the 90V, 1725 rpm industry standard for operation with unfiltered speed controls, nor Bodine’s typical voltage and rpm for filtered 130VDC speed control operation. These new stock models from Bodine can replace 90V or 180VDC gearmotors sold by Baldor, Bison Gear, Leeson, or Grainger.
Type 24A-Z Parallel Shaft Gearmotors
90VDC Specs
| Model | Product Type | Speed (RPM) | Torque (lb-in) | Ratio | Current (Amps) | F.F. |
|---|---|---|---|---|---|---|
| 1245 | 24A4BEPM-Z4 | 14 | 120 | 180 | 0.58 | 1.6 |
| 1243 | 24A4BEPM-Z4 | 28 | 77 | 90 | 0.58 | 1.6 |
| 1242 | 24A4BEPM-Z3 | 42 | 55 | 60 | 0.58 | 1.6 |
| 1241 | 24A4BEPM-Z3 | 83 | 27 | 30 | 0.58 | 1.6 |
| 1239 | 24A4BEPM-Z2 | 139 | 18 | 18 | 0.58 | 1.6 |
| 1238 | 24A4BEPM-Z2 | 208 | 12 | 12 | 0.58 | 1.6 |
| 1237 | 24A4BEPM-Z2 | 417 | 6 | 6 | 0.58 | 1.6 |
180VDC Specs
| Model | Product Type | Speed (RPM) | Torque (lb-in) | Ratio | Current (Amps) | F.F. |
|---|---|---|---|---|---|---|
| 1236 | 24A4BEPM-Z4 | 14 | 120 | 180 | 0.30 | 1.5 |
| 1235 | 24A4BEPM-Z4 | 28 | 77 | 90 | 0.30 | 1.5 |
| 1234 | 24A4BEPM-Z3 | 42 | 55 | 60 | 0.30 | 1.5 |
| 1233 | 24A4BEPM-Z3 | 83 | 27 | 30 | 0.30 | 1.5 |
| 1232 | 24A4BEPM-Z2 | 139 | 18 | 18 | 0.30 | 1.5 |
| 1231 | 24A4BEPM-Z2 | 208 | 12 | 12 | 0.30 | 1.5 |
| 1230 | 24A4BEPM-Z2 | 417 | 6 | 6 | 0.30 | 1.5 |
Type 33A-Z Parallel Shaft Gearmotors
90VDC Specs
| Model | Product Type | Speed (RPM) | Torque (lb-in) | Ratio | Current (Amps) | F.F. |
|---|---|---|---|---|---|---|
| 1189 | 33A5BEPM-Z3 | 42 | 137 | 60 | 1.6 | 1.4 |
| 1188 | 33A5BEPM-Z3 | 83 | 120 | 30 | 1.6 | 1.4 |
| 1186 | 33A5BEPM-Z2 | 139 | 48 | 18 | 1.6 | 1.4 |
| 1185 | 33A5BEPM-Z2 | 208 | 44 | 12 | 1.6 | 1.4 |
| 1184 | 33A5BEPM-Z2 | 417 | 20 | 6 | 1.6 | 1.4 |
180VDC Specs
Type 33A-WX Parallel Shaft Gearmotors
90VDC Specs
| Model | Product Type | Speed (RPM) | Torque (lb-in) | Ratio | Current (Amps) | F.F. |
|---|---|---|---|---|---|---|
| 1259 | 33A5BEPM-WX4 | 8.0 | 205 | 312 | 1.6 | 1.4 |
| 1247 | 33A5BEPM-WX4 | 15 | 200 | 172 | 1.6 | 1.4 |
| 1257 | 33A5BEPM-WX4 | 26 | 185 | 98 | 1.6 | 1.4 |
| 1256 | 33A5BEPM-WX3 | 38 | 188 | 66 | 1.6 | 1.4 |
| 1255 | 33A5BEPM-WX3 | 46 | 156 | 55 | 1.6 | 1.4 |
| 1254 | 33A5BEPM-WX3 | 57 | 131 | 44 | 1.6 | 1.4 |
| 1253 | 33A5BEPM-WX3 | 84 | 88 | 30 | 1.6 | 1.4 |
| 1252 | 33A5BEPM-WX2 | 123 | 64 | 20 | 1.6 | 1.4 |
| 1251 | 33A5BEPM-WX2 | 181 | 41 | 14 | 1.6 | 1.4 |
| 1250 | 33A5BEPM-WX2 | 266 | 26 | 9 | 1.6 | 1.4 |
| 1249 | 33A5BEPM-WX2 | 455 | 15 | 6 | 1.6 | 1.4 |
| 1248 | 33A5BEPM-WX2 | 658 | 11 | 4 | 1.6 | 1.4 |
180VDC Specs
| Model | Product Type | Speed (RPM) | Torque (lb-in) | Ratio | Current (Amps) | F.F. |
|---|---|---|---|---|---|---|
| 1172 | 33A5BEPM-WX4 | 8.0 | 205 | 312 | 0.8 | 1.4 |
| 1170 | 33A5BEPM-WX4 | 15 | 200 | 172 | 0.8 | 1.4 |
| 1168 | 33A5BEPM-WX4 | 26 | 185 | 98 | 0.8 | 1.4 |
| 1166 | 33A5BEPM-WX3 | 38 | 190 | 66 | 0.8 | 1.4 |
| 1164 | 33A5BEPM-WX3 | 46 | 163 | 55 | 0.8 | 1.4 |
| 1162 | 33A5BEPM-WX3 | 57 | 131 | 44 | 0.8 | 1.4 |
| 1169 | 33A5BEPM-WX3 | 84 | 88 | 30 | 0.8 | 1.4 |
| 1158 | 33A5BEPM-WX2 | 123 | 64 | 20 | 0.8 | 1.4 |
| 1154 | 33A5BEPM-WX2 | 181 | 41 | 14 | 0.8 | 1.4 |
| 1153 | 33A5BEPM-WX2 | 266 | 26 | 9 | 0.8 | 1.4 |
| 1152 | 33A5BEPM-WX2 | 455 | 15 | 6 | 0.8 | 1.4 |
| 1150 | 33A5BEPM-WX2 | 658 | 11 | 4 | 0.8 | 1.4 |
Type 42A-FX Parallel Shaft Gearmotors
90VDC Specs
| Model | Product Type | Speed (RPM) | Torque (lb-in) | Ratio | Current (Amps) | F.F. |
|---|---|---|---|---|---|---|
| 1510 | 42A5BEPM-FX4 | 8.3 | 350 | 300 | 2.2 | 1.5 |
| 1509 | 42A5BEPM-FX4 | 14 | 350 | 180 | 2.2 | 1.5 |
| 1508 | 42A5BEPM-FX4 | 21 | 350 | 120 | 2.2 | 1.5 |
| 1507 | 42A5BEPM-FX3 | 42 | 290 | 60 | 2.2 | 1.5 |
| 1506 | 42A5BEPM-FX3 | 63 | 194 | 40 | 2.2 | 1.5 |
| 1505 | 42A5BEPM-FX3 | 83 | 145 | 30 | 2.2 | 1.5 |
| 1504 | 42A5BEPM-FX3 | 125 | 97 | 20 | 2.2 | 1.5 |
| 1503 | 42A5BEPM-FX2 | 167 | 73 | 15 | 2.2 | 1.5 |
| 1502 | 42A5BEPM-FX2 | 250 | 48 | 10 | 2.2 | 1.5 |
| 1501 | 42A5BEPM-FX1 | 500 | 25 | 5 | 2.2 | 1.5 |
180VDC Specs
| Model | Product Type | Speed (RPM) | Torque (lb-in) | Ratio | Current (Amps) | F.F. |
|---|---|---|---|---|---|---|
| 5149 | 42A5BEPM-FX4 | 8.3 | 350 | 300 | 1.2 | 1.6 |
| 5148 | 42A5BEPM-FX4 | 14 | 350 | 180 | 1.2 | 1.6 |
| 5147 | 42A5BEPM-FX4 | 21 | 350 | 120 | 1.2 | 1.6 |
| 5146 | 42A5BEPM-FX3 | 42 | 290 | 60 | 1.2 | 1.6 |
| 5145 | 42A5BEPM-FX3 | 63 | 194 | 40 | 1.2 | 1.6 |
| 5144 | 42A5BEPM-FX3 | 83 | 145 | 30 | 1.2 | 1.6 |
| 5143 | 42A5BEPM-FX3 | 125 | 97 | 20 | 1.2 | 1.6 |
| 5142 | 42A5BEPM-FX2 | 167 | 73 | 15 | 1.2 | 1.6 |
| 5141 | 42A5BEPM-FX2 | 250 | 48 | 10 | 1.2 | 1.6 |
| 5140 | 42A5BEPM-FX1 | 500 | 25 | 5 | 1.2 | 1.6 |
Type 33A-5L/H Hollow Shaft Gearmotors
90VDC Specs
| Model | Product Type | Speed (RPM) | Torque (lb-in) | Ratio | Current (Amps) | F.F. |
|---|---|---|---|---|---|---|
| 1526 | 33A5BEPM-5L/H | 33 | 89 | 75 | 1.6 | 1.4 |
| 1525 | 33A5BEPM-5L/H | 63 | 68 | 40 | 1.6 | 1.4 |
| 1524 | 33A5BEPM-5L/H | 83 | 61 | 30 | 1.6 | 1.4 |
| 1523 | 33A5BEPM-5L/H | 125 | 47 | 20 | 1.6 | 1.4 |
| 1522 | 33A5BEPM-5L/H | 250 | 25 | 10 | 1.6 | 1.4 |
| 1521 | 33A5BEPM-5L/H | 500 | 14 | 5 | 1.6 | 1.4 |
180VDC Specs
Hypoid Hollow Shaft Gearmotors
90VDC Specs
| Model | Product Type | Speed (RPM) | Torque (lb-in) | Ratio | Current (Amps) | F.F. |
|---|---|---|---|---|---|---|
| 3023 | 33A7-30H3 | 10 | 1120 | 240 | 2.3 | 1.4 |
| 3022 | 33A7-30H3 | 13 | 935 | 200 | 2.3 | 1.4 |
| 3021 | 33A7-30H3 | 16 | 750 | 160 | 2.3 | 1.4 |
| 3020 | 33A7-30H3 | 21 | 560 | 120 | 2.3 | 1.4 |
| 3019 | 33A7-30H3 | 31 | 375 | 80 | 2.3 | 1.4 |
| 3018 | 33A7-25H2 | 42 | 285 | 60 | 2.3 | 1.4 |
| 3017 | 33A7-25H2 | 63 | 190 | 40 | 2.3 | 1.4 |
| 3016 | 33A7-25H2 | 83 | 155 | 30 | 2.3 | 1.4 |
| 3015 | 33A7-25H2 | 125 | 100 | 20 | 2.3 | 1.4 |
| 3014 | 33A7-25H2 | 167 | 75 | 15 | 2.3 | 1.4 |
| 3013 | 33A7-25H2 | 250 | 50 | 10 | 2.3 | 1.4 |
| 3012 | 33A7-25H2 | 500 | 25 | 5 | 2.3 | 1.4 |
180VDC Specs
| Model | Product Type | Speed (RPM) | Torque (lb-in) | Ratio | Current (Amps) | F.F. |
|---|---|---|---|---|---|---|
| 3035 | 33A7-30H3 | 10 | 865 | 240 | 1.1 | 1.5 |
| 3034 | 33A7-30H3 | 13 | 720 | 200 | 1.1 | 1.5 |
| 3033 | 33A7-30H3 | 16 | 580 | 160 | 1.1 | 1.5 |
| 3032 | 33A7-30H3 | 21 | 435 | 120 | 1.1 | 1.5 |
| 3031 | 33A7-30H3 | 31 | 290 | 80 | 1.1 | 1.5 |
| 3030 | 33A7-25H2 | 42 | 220 | 60 | 1.1 | 1.5 |
| 3029 | 33A7-25H2 | 63 | 145 | 40 | 1.1 | 1.5 |
| 3028 | 33A7-25H2 | 83 | 120 | 30 | 1.1 | 1.5 |
| 3027 | 33A7-25H2 | 125 | 80 | 20 | 1.1 | 1.5 |
| 3026 | 33A7-25H2 | 167 | 60 | 15 | 1.1 | 1.5 |
| 3025 | 33A7-25H2 | 250 | 40 | 10 | 1.1 | 1.5 |
| 3024 | 33A7-25H2 | 500 | 20 | 5 | 1.1 | 1.5 |

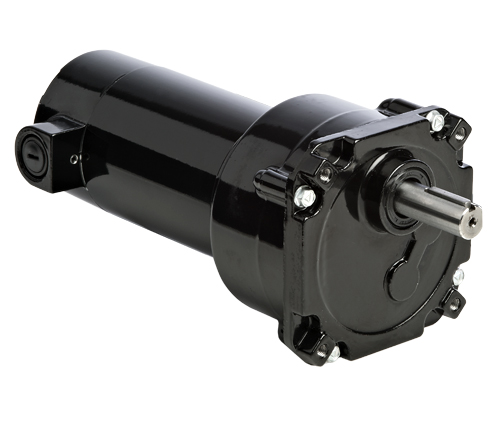

Type 24A-Z
Parallel Shaft Gearmotors
90VDC Specs
| Model | Product Type | Speed (RPM) | Torque (lb-in) | Ratio | Current (Amps) | F.F. |
|---|---|---|---|---|---|---|
| 1245 | 24A4BEPM-Z4 | 14 | 120 | 180 | 0.58 | 1.6 |
| 1243 | 24A4BEPM-Z4 | 28 | 77 | 90 | 0.58 | 1.6 |
| 1242 | 24A4BEPM-Z3 | 42 | 55 | 60 | 0.58 | 1.6 |
| 1241 | 24A4BEPM-Z3 | 83 | 27 | 30 | 0.58 | 1.6 |
| 1239 | 24A4BEPM-Z2 | 139 | 18 | 18 | 0.58 | 1.6 |
| 1238 | 24A4BEPM-Z2 | 208 | 12 | 12 | 0.58 | 1.6 |
| 1237 | 24A4BEPM-Z2 | 417 | 6 | 6 | 0.58 | 1.6 |
180VDC Specs
| Model | Product Type | Speed (RPM) | Torque (lb-in) | Ratio | Current (Amps) | F.F. |
|---|---|---|---|---|---|---|
| 1236 | 24A4BEPM-Z4 | 14 | 120 | 180 | 0.30 | 1.5 |
| 1235 | 24A4BEPM-Z4 | 28 | 77 | 90 | 0.30 | 1.5 |
| 1234 | 24A4BEPM-Z3 | 42 | 55 | 60 | 0.30 | 1.5 |
| 1233 | 24A4BEPM-Z3 | 83 | 27 | 30 | 0.30 | 1.5 |
| 1232 | 24A4BEPM-Z2 | 139 | 18 | 18 | 0.30 | 1.5 |
| 1231 | 24A4BEPM-Z2 | 208 | 12 | 12 | 0.30 | 1.5 |
| 1230 | 24A4BEPM-Z2 | 417 | 6 | 6 | 0.30 | 1.5 |

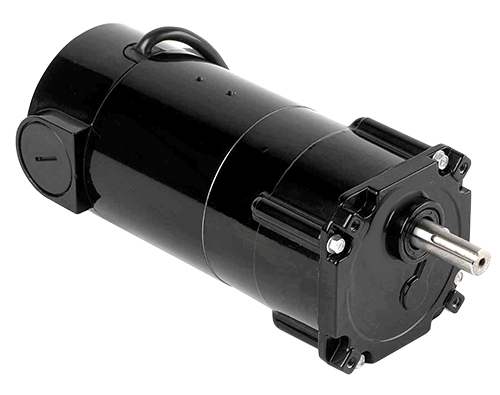

Type 33A5-Z
Parallel Shaft Gearmotors

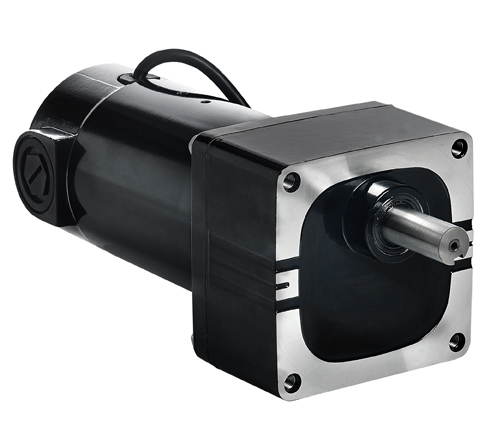

Type 33A-WX
Parallel Shaft Gearmotors
90VDC Specs
| Model | Product Type | Speed (RPM) | Torque (lb-in) | Ratio | Current (Amps) | F.F. |
|---|---|---|---|---|---|---|
| 1259 | 33A5BEPM-WX4 | 8.0 | 205 | 312 | 1.6 | 1.4 |
| 1247 | 33A5BEPM-WX4 | 15 | 200 | 172 | 1.6 | 1.4 |
| 1257 | 33A5BEPM-WX4 | 26 | 185 | 98 | 1.6 | 1.4 |
| 1256 | 33A5BEPM-WX3 | 38 | 188 | 66 | 1.6 | 1.4 |
| 1255 | 33A5BEPM-WX3 | 46 | 156 | 55 | 1.6 | 1.4 |
| 1254 | 33A5BEPM-WX3 | 57 | 125 | 44 | 1.6 | 1.4 |
| 1253 | 33A5BEPM-WX3 | 84 | 85 | 30 | 1.6 | 1.4 |
| 1252 | 33A5BEPM-WX2 | 123 | 62 | 20 | 1.6 | 1.4 |
| 1251 | 33A5BEPM-WX2 | 181 | 37 | 14 | 1.6 | 1.4 |
| 1250 | 33A5BEPM-WX2 | 266 | 25 | 9 | 1.6 | 1.4 |
| 1249 | 33A5BEPM-WX2 | 455 | 15 | 6 | 1.6 | 1.4 |
| 1248 | 33A5BEPM-WX2 | 658 | 9 | 4 | 1.6 | 1.4 |
180VDC Specs
| Model | Product Type | Speed (RPM) | Torque (lb-in) | Ratio | Current (Amps) | F.F. |
|---|---|---|---|---|---|---|
| 1172 | 33A5BEPM-WX4 | 8.0 | 205 | 312 | 0.8 | 1.4 |
| 1170 | 33A5BEPM-WX4 | 15 | 200 | 172 | 0.8 | 1.4 |
| 1168 | 33A5BEPM-WX4 | 26 | 185 | 98 | 0.8 | 1.4 |
| 1166 | 33A5BEPM-WX3 | 38 | 190 | 66 | 0.8 | 1.4 |
| 1164 | 33A5BEPM-WX3 | 46 | 163 | 55 | 0.8 | 1.4 |
| 1162 | 33A5BEPM-WX3 | 57 | 131 | 44 | 0.8 | 1.4 |
| 1169 | 33A5BEPM-WX3 | 84 | 88 | 30 | 0.8 | 1.4 |
| 1158 | 33A5BEPM-WX2 | 123 | 64 | 20 | 0.8 | 1.4 |
| 1154 | 33A5BEPM-WX2 | 181 | 39 | 14 | 0.8 | 1.4 |
| 1153 | 33A5BEPM-WX2 | 266 | 26 | 9 | 0.8 | 1.4 |
| 1152 | 33A5BEPM-WX2 | 455 | 15 | 6 | 0.8 | 1.4 |
| 1150 | 33A5BEPM-WX2 | 658 | 9 | 4 | 0.8 | 1.4 |

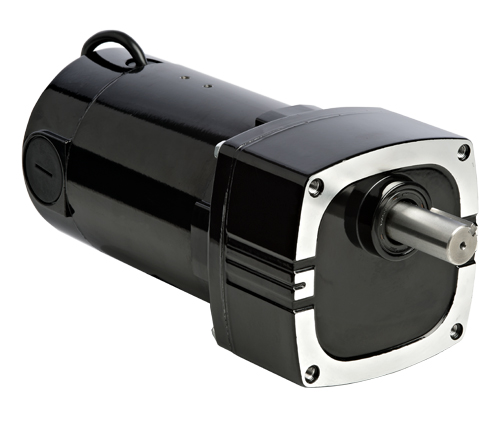

Type 42A-FX
Parallel Shaft Gearmotors
90VDC Specs
| Model | Product Type | Speed (RPM) | Torque (lb-in) | Ratio | Current (Amps) | F.F. |
|---|---|---|---|---|---|---|
| 1510 | 42A5BEPM-FX4 | 8.3 | 350 | 300 | 2.2 | 1.5 |
| 1509 | 42A5BEPM-FX4 | 14 | 350 | 180 | 2.2 | 1.5 |
| 1508 | 42A5BEPM-FX4 | 21 | 350 | 120 | 2.2 | 1.5 |
| 1507 | 42A5BEPM-FX3 | 42 | 290 | 60 | 2.2 | 1.5 |
| 1506 | 42A5BEPM-FX3 | 63 | 194 | 40 | 2.2 | 1.5 |
| 1505 | 42A5BEPM-FX3 | 83 | 145 | 30 | 2.2 | 1.5 |
| 1504 | 42A5BEPM-FX3 | 125 | 97 | 20 | 2.2 | 1.5 |
| 1503 | 42A5BEPM-FX2 | 167 | 73 | 15 | 2.2 | 1.5 |
| 1502 | 42A5BEPM-FX2 | 250 | 48 | 10 | 2.2 | 1.5 |
| 1501 | 42A5BEPM-FX1 | 500 | 25 | 5 | 2.2 | 1.5 |
180VDC Specs
| Model | Product Type | Speed (RPM) | Torque (lb-in) | Ratio | Current (Amps) | F.F. |
|---|---|---|---|---|---|---|
| 5149 | 42A5BEPM-FX4 | 8.3 | 350 | 300 | 1.2 | 1.6 |
| 5148 | 42A5BEPM-FX4 | 14 | 350 | 180 | 1.2 | 1.6 |
| 5147 | 42A5BEPM-FX4 | 21 | 350 | 120 | 1.2 | 1.6 |
| 5146 | 42A5BEPM-FX3 | 42 | 290 | 60 | 1.2 | 1.6 |
| 5145 | 42A5BEPM-FX3 | 63 | 194 | 40 | 1.2 | 1.6 |
| 5144 | 42A5BEPM-FX3 | 83 | 145 | 30 | 1.2 | 1.6 |
| 5143 | 42A5BEPM-FX3 | 125 | 97 | 20 | 1.2 | 1.6 |
| 5142 | 42A5BEPM-FX2 | 167 | 73 | 15 | 1.2 | 1.6 |
| 5141 | 42A5BEPM-FX2 | 250 | 48 | 10 | 1.2 | 1.6 |
| 5140 | 42A5BEPM-FX1 | 500 | 25 | 5 | 1.2 | 1.6 |

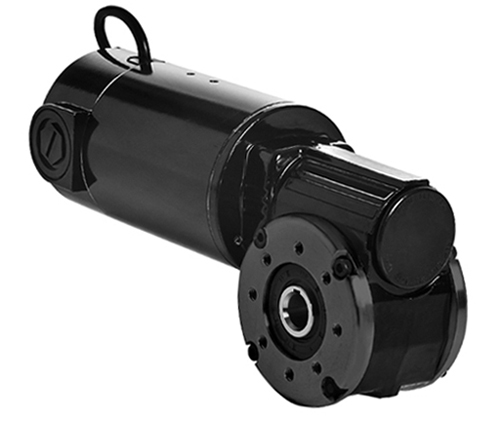

Type 33A-5L
Hollow Shaft Gearmotors
90VDC Specs
| Model | Product Type | Speed (RPM) | Torque (lb-in) | Ratio | Current (Amps) | F.F. |
|---|---|---|---|---|---|---|
| 1526 | 33A5BEPM-5L/H | 33 | 89 | 75 | 1.6 | 1.4 |
| 1525 | 33A5BEPM-5L/H | 63 | 68 | 40 | 1.6 | 1.4 |
| 1524 | 33A5BEPM-5L/H | 83 | 61 | 30 | 1.6 | 1.4 |
| 1523 | 33A5BEPM-5L/H | 125 | 47 | 20 | 1.6 | 1.4 |
| 1522 | 33A5BEPM-5L/H | 250 | 25 | 10 | 1.6 | 1.4 |
| 1521 | 33A5BEPM-5L/H | 500 | 14 | 5 | 1.6 | 1.4 |
180VDC Specs

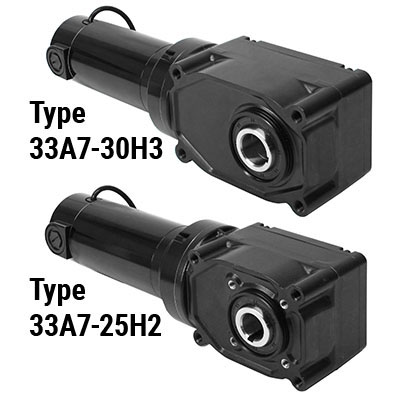

Hypoid
Hollow Shaft Gearmotors
90VDC Specs
| Model | Product Type | Speed (RPM) | Torque (lb-in) | Ratio | Current (Amps) | F.F. |
|---|---|---|---|---|---|---|
| 3023 | 33A7-30H3 | 10 | 1120 | 240 | 2.3 | 1.4 |
| 3022 | 33A7-30H3 | 13 | 935 | 200 | 2.3 | 1.4 |
| 3021 | 33A7-30H3 | 16 | 750 | 160 | 2.3 | 1.4 |
| 3020 | 33A7-30H3 | 21 | 560 | 120 | 2.3 | 1.4 |
| 3019 | 33A7-30H3 | 31 | 375 | 80 | 2.3 | 1.4 |
| 3018 | 33A7-25H2 | 42 | 285 | 60 | 2.3 | 1.4 |
| 3017 | 33A7-25H2 | 63 | 190 | 40 | 2.3 | 1.4 |
| 3016 | 33A7-25H2 | 83 | 155 | 30 | 2.3 | 1.4 |
| 3015 | 33A7-25H2 | 125 | 100 | 20 | 2.3 | 1.4 |
| 3014 | 33A7-25H2 | 167 | 75 | 15 | 2.3 | 1.4 |
| 3013 | 33A7-25H2 | 250 | 50 | 10 | 2.3 | 1.4 |
| 3012 | 33A7-25H2 | 500 | 25 | 5 | 2.3 | 1.4 |
180VDC Specs
| Model | Product Type | Speed (RPM) | Torque (lb-in) | Ratio | Current (Amps) | F.F. |
|---|---|---|---|---|---|---|
| 3035 | 33A7-30H3 | 10 | 865 | 240 | 1.1 | 1.5 |
| 3034 | 33A7-30H3 | 13 | 720 | 200 | 1.1 | 1.5 |
| 3033 | 33A7-30H3 | 16 | 580 | 160 | 1.1 | 1.5 |
| 3032 | 33A7-30H3 | 21 | 435 | 120 | 1.1 | 1.5 |
| 3031 | 33A7-30H3 | 31 | 290 | 80 | 1.1 | 1.5 |
| 3030 | 33A7-25H2 | 42 | 220 | 60 | 1.1 | 1.5 |
| 3029 | 33A7-25H2 | 63 | 145 | 40 | 1.1 | 1.5 |
| 3028 | 33A7-25H2 | 83 | 120 | 30 | 1.1 | 1.5 |
| 3027 | 33A7-25H2 | 125 | 80 | 20 | 1.1 | 1.5 |
| 3026 | 33A7-25H2 | 167 | 60 | 15 | 1.1 | 1.5 |
| 3025 | 33A7-25H2 | 250 | 40 | 10 | 1.1 | 1.5 |
| 3024 | 33A7-25H2 | 500 | 20 | 5 | 1.1 | 1.5 |
