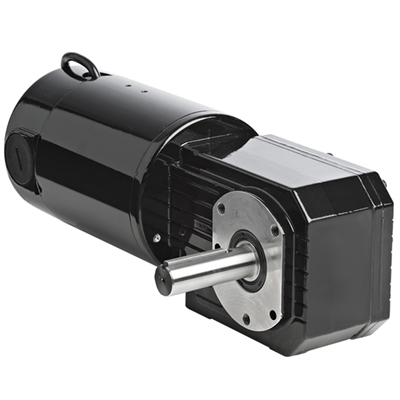

Metric 42A-GB Series DC Right Angle Gearmotor
Search by Specification (Parameter Search)
Filter By:
Metric 42A-GB Series DC Right Angle Gearmotor
Application Information
- Performance ratings of 180V models are based on use with an unfiltered SCR speed control (Form Factor = 1.6).
- 3-point mount, tapped holes on both sides of gearhead face, and four tapped mounting holes under the gearhead.
Optional Accessories
- Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 1984]
- Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 0984]
- IP-44 kit for 42A motors [model 0978]
- Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors [model 0986]
STANDARD FEATURES
- Metric mounting threads and metric drive shaft dimensions.
- 42A Motor provides high starting torque, adjustable speed, and predictable performance under a range of operating conditions.
- Unvented gearhousing.
- Industrial lip type seals on motor and output shafts.
- Ball bearing on output shaft for increased radial load capacity and long life.
- Permanently lubricated gearing utilizing oil for long life.
- Hardened helical output gearing for quietness and high output torque.
- Bronze primary worm gear for high shock load capability.
- Hardened and ground worm hobbed on the motor shaft for high strength and long life.
- Performance ratings of 180V models are based on use with an unfiltered SCR speed control (Form Factor = 1.6).
Metric 42A-GB Series DC Right Angle Gearmotor Models
-
Model Number
1360
Speed / RPM
29
Torque
16.95
Motor
124.28
Voltage
180 DC
Gear Ratio
60:1
-
Model Number
1362
Speed / RPM
14
Torque
28.25
Motor
124.28
Voltage
180 DC
Gear Ratio
120:1
-
Model Number
1364
Speed / RPM
9
Torque
40.45
Motor
124.28
Voltage
180 DC
Gear Ratio
190:1
-
Model Number
1366
Speed / RPM
6
Torque
42.93
Motor
124.28
Voltage
180 DC
Gear Ratio
280:1
