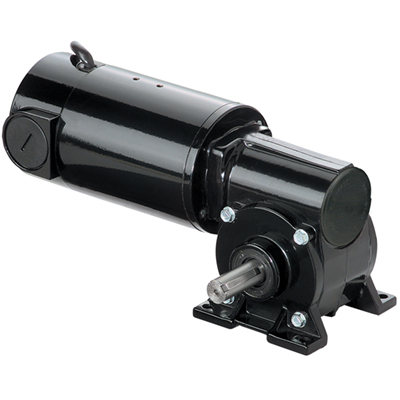

Model 6241 Metric 33A-5F Series DC Right Angle Gearmotor
Search by Specification (Parameter Search)
Filter By:
Metric 33A-5F Series DC Right Angle Gearmotor
Model 6241
SPECIFICATIONS
| Speed (rpm) | 173 |
| Rated Torque (Nm) | 1.9 |
| Rated Torque (lb-in) | 17 |
| Peak Torque (Nm) | 6.1 |
| Peak Torque (lb-in) | 54 |
| Power (Watts) | 54 |
| Power (HP) | 1/14 |
| Volts | 180 |
| Amps | 0.41 |
| Gear Ratio | 10 |
| Radial Load (N) | 335 |
| Radial Load (lbs) | 80 |
| Length XH (mm) | 263 |
| Length XH (inch) | 10.35 |
| Weight (kg) | 7.6 |
| Weight (lbs) | 16.8 |
| Connection Diagram | 07410097 |
| Product Type | 33A5BEPM-5F |
| HPDecimal | 0.0714 |
CAD Drawings
Wiring Diagram
Safety Data Sheets
- Download PDF
Optional Accessories
Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 0984]
Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 1984]
IP-44 kit for 33A motors [model 0977]
Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors [model 0986]
STANDARD FEATURES
- Performance ratings of 180V models are based on use with an unfiltered SCR speed control (Form Factor = 1.6).
Ready to Purchase? Find a Distributor
All prices are in U.S. dollars. Specifications and prices are subject to change without notice. Web price excludes taxes, shipping, and handling charges. Terms & Conditions of Sale
Availability
Order Quantity: 1-25
Chat with us for Current Stock Availability
-
