Hypoid Series 33A7 DC Right Angle Hollow Shaft 130V, 24V & 12V Gearmotors

Hypoid Series 33A7 DC Right Angle Hollow Shaft 130V, 24V & 12V Gearmotors

Application Information

  • Performance ratings of 130V models (F.F.=1.0) are based on use with filtered speed controls. Ratings of 24V and 12 VDC models are based on operation from DC power.

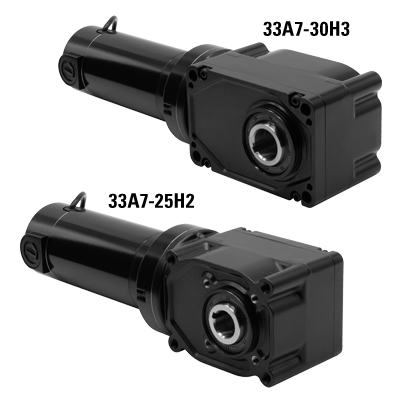

  • Two gearhead sizes: 25H2 (5:1 to 60:1) with 1-inch hollow shaft, and 30H3 (80:1 to 240:1) with 1.25-inch hollow shaft bore size.
  • Face mount via four tapped holes or through-bolts.
  • Unvented gearhousing mounts in any orientation.
  • More efficient than similar-sized worm-gear models.
  • Optional base/foot mount brackets – model 0957 for type 25H2, and model 0959 for type 30H3 gearmotors.
  • (1) plastic shaft cover included with each gearmotor.

Optional Accessories

STANDARD FEATURES
  • 33A Motor provides high starting torque, adjustable speed, and predictable performance under a range of operating conditions. TENV.
  • Class “F” insulation and ratings
  • Pre-seated motor brushes for optimum performance and quiet operation
  • Hardened steel gears for long life and maximum performance
  • Hollow shaft eliminates need for shaft couplings and extra mounting hardware
  • Performance ratings of 130V models (F.F.=1.0) are based on use with filtered speed controls. Ratings of 24V and 12 VDC models are based on operation from DC power.
  • Two gearhead sizes: 25H2 (5:1 to 60:1) with 1-inch hollow shaft, and 30H3 (80:1 to 240:1) with 1.25-inch hollow shaft bore size. One plastic shaft cover is included with each gearmotor. One plastic shaft cover is included with each gearmotor.
  • Face mount via four tapped holes or through-bolts.
  • Unvented gearhousing mounts in any orientation. High-performance Grease. Gearmotors are lubricated for life.
  • More efficient than similar-sized worm-gear models
  • Encoder-compatible with new optional screw-in encoder shaft kit model 0964. (Standard/stock models supplied with factory-installed cover over shaft opening).

AVAILABLE ITEMS

Hypoid Series 33A7 DC Right Angle Hollow Shaft 130V, 24V & 12V Gearmotors Models
