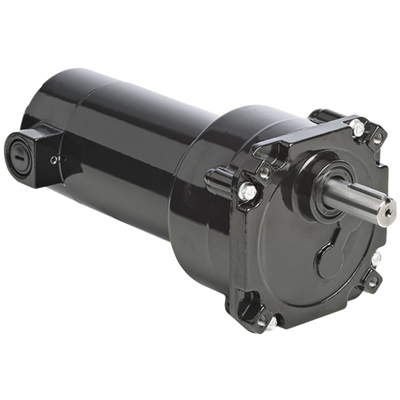

Metric 24A-Z Series Parallel Shaft DC Gearmotor
Search by Specification (Parameter Search)
Filter By:
Metric 24A-Z Series Parallel Shaft DC Gearmotor
Application Information
- Performance ratings of 180V models are based on use with filtered controls.
- Face mount is standard.
Optional Accessories
STANDARD FEATURES
- Metric mounting threads and metric drive shaft dimensions.
- 24A Motor provides high starting torque, adjustable speed, and predictable performance under a range of operating conditions.
- Unvented gearhousing.
- Industrial lip type seals on motor and output shafts.
- Needle bearing on output shaft for increased radial load capacity and long life.
- Permanently lubricated gearing utilizing oil for long life.
- Wide reinforced thermoplastic helical gear on input stage for quietness and wide hardened steel spur gears on subsequent stages for high output torque and long life.
- Helical pinion accurately cut on motor shaft for maximum strength and minimum noise.
- Noise-tested ball bearings permanently lubricated.
- Locked bearing minimizes endplay.
Metric 24A-Z Series Parallel Shaft DC Gearmotor Models
-
Model Number
1157
Speed / RPM
288
Torque
0.56
Motor
23.3
Voltage
180 DC
Gear Ratio
6:1
-
Model Number
1160
Speed / RPM
58
Torque
2.6
Motor
23.3
Voltage
180 DC
Gear Ratio
30:1
-
Model Number
1161
Speed / RPM
29
Torque
5.2
Motor
23.3
Voltage
180 DC
Gear Ratio
60:1
-
Model Number
1163
Speed / RPM
10
Torque
11.3
Motor
23.3
Voltage
180 DC
Gear Ratio
180:1
