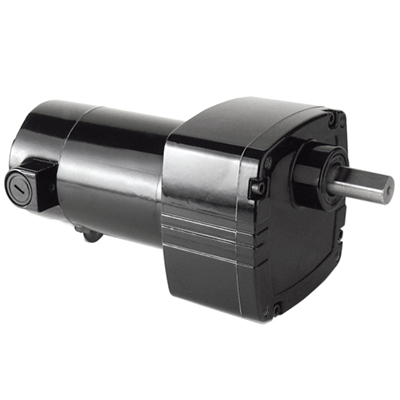

Metric 24A-D Series Parallel Shaft DC Gearmotor
Search by Specification (Parameter Search)
Filter By:
Metric 24A-D Series Parallel Shaft DC Gearmotor
Application Information
- Performance ratings of 180V models are based on use with an unfiltered SCR speed control (Form Factor = 1.6).
- Face mount is standard.
Optional Accessories
STANDARD FEATURES
- Metric mounting threads and metric drive shaft dimensions.
- 24A Motor provides high starting torque, adjustable speed, and predictable performance under a range of operating conditions.
- Unvented gearhousing.
- Industrial lip type seals on motor and output shafts.
- Needle bearing on output shaft for increased radial load capacity and long life.
- Permanently lubricated gearing utilizing oil for long life.
- Reinforced thermoplastic helical gear on input stage for quietness and hardened steel spur gears on subsequent stages for high output torque and long life.
- Helical pinion accurately cut on motor shaft for maximum strength and minimum noise.
- Performance ratings of 180V models are based on use with an unfiltered SCR speed control (Form Factor = 1.6).
Metric 24A-D Series Parallel Shaft DC Gearmotor Models
-
Model Number
1392
Speed / RPM
144
Torque
1.02
Motor
23.3
Voltage
180 DC
Gear Ratio
12:1
-
Model Number
1394
Speed / RPM
58
Torque
2.6
Motor
23.3
Voltage
180 DC
Gear Ratio
30:1
-
Model Number
1395
Speed / RPM
29
Torque
4.52
Motor
23.3
Voltage
180 DC
Gear Ratio
60:1
-
Model Number
1397
Speed / RPM
10
Torque
4.52
Motor
15.22
Voltage
180 DC
Gear Ratio
180:1
-
Model Number
1398
Speed / RPM
6
Torque
4.52
Motor
15.22
Voltage
180 DC
Gear Ratio
300:1
