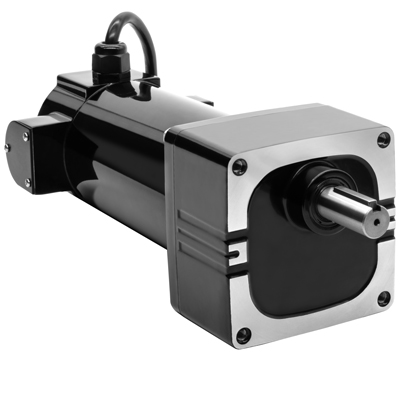

33A7-WX Series DC Parallel Shaft 12V Gearmotors – IP55
Search by Specification (Parameter Search)
Filter By:
33A7-WX Series DC Parallel Shaft 12V Gearmotors – IP55
Application Information
- Gearmotors are ideal for mobile or remote location, battery or solar-powered applications.
- Environmental Protection Rating: IP-55.
- Lubricated for life with synthetic lubricant.
- Face mount is standard; base mount is optional.
Application Note: bodine-gearmotors-33A-42A-Cartridge-Brush-Replacement-07481115.B-web.pdf
Optional Accessories
STANDARD FEATURES
- 33A Motor provides high starting torque, adjustable speed, and predictable performance under a range of operating conditions. 12VDC (at 2500 rpm). Insulation Class F. TENV.
- Rated IP-55. Protected from limited dust ingress and low pressure water jets.
- Cartridge style brushes for easy routine brush maintenance, and longer life.
- Unvented gearhousing for universal horizontal mounting.
- Lubricated for life with synthetic lubricant.
- Industrial lip type seals on motor and output shafts.
- Needle bearings throughout for increased radial load capacity and long life.
- All steel helical gears. Gearing meets or exceeds AGMA 9 standard for maximum life and quiet operation.
33A7-WX Series DC Parallel Shaft 12V Gearmotors – IP55 Models
-
Model Number
1229
Speed / RPM
26
Torque
185.0
Motor
1/6
Voltage
12 DC
Gear Ratio
98:1
-
Model Number
1228
Speed / RPM
38
Torque
190.0
Motor
1/6
Voltage
12 DC
Gear Ratio
66:1
-
Model Number
1226
Speed / RPM
57
Torque
142.0
Motor
1/6
Voltage
12 DC
Gear Ratio
43.9:1
-
Model Number
1225
Speed / RPM
123
Torque
70.0
Motor
1/6
Voltage
12 DC
Gear Ratio
20.4:1
-
Model Number
1224
Speed / RPM
266
Torque
29.0
Motor
1/6
Voltage
12 DC
Gear Ratio
9.4:1
-
Model Number
1223
Speed / RPM
455
Torque
17.0
Motor
1/6
Voltage
12 DC
Gear Ratio
5.5:1
