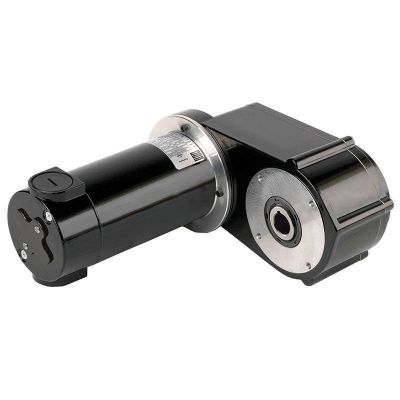

33A-HG/H Series Offset Parallel Shaft DC Hollow Shaft Gearmotor
Application Information
- Hollow shaft gearhead provides flexible mounting and high torque.
- Face mounting is standard, both sides of gearhead.
- 12V, 24V, 90V & 180V (SCR Rated) and 130VDC winding options.
- Unvented gearhousing mounts in any orientation
- Stainless Steel ¾-inch (0.75”), single- and double-shaft kits available.
- Encoder-compatible with new optional screw-in encoder shaft kit model 0964
Optional Accessories
- Cover Kit for HG/H Hollow Shaft Gearmotors [model 0954]
- Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 1984]
- Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 0984]
- Encoder Shaft Kit [model 0964]
- IP-44 kit for 33A motors [model 0977]
- Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors [model 0986]
- Shaft Kit HG/H 3/4-inch / double shaft [model 0933]
- Shaft Kit HG/H 3/4-inch / single shaft [model 0932]
STANDARD FEATURES
- 33A7 Motor provides high starting torque, adjustable speed, and predictable performance under a range of operating conditions.
- 12V, 24V, 90V & 180V (SCR Rated) and 130VDC winding options. Class F.
- Totally enclosed IP-40 rating. IP-44 with optional t-box or boot kit installed.
- Hollow shaft eliminates need for shaft couplings and extra mounting hardware
- Stainless Steel ¾-inch (0.75”), single- and double-shaft kits available.
- Face mounting is standard, both sides of gearhead.
- Encoder-compatible with new optional screw-in encoder shaft kit model 0964. (Standard/stock models supplied with factory-installed cover over accessory shaft opening).
- Unvented gearhousing for universal horizontal mounting.
- Permanently lubricated with high-performance lubricant.
- Needle bearings for increased radial load capacity and long life, large ball bearings on the output shaft.
- Hardened helical and spur gearing for quietness and high output to size ratio.
- Industrial lip type seals on motor and output shafts.
33A-HG/H Series Offset Parallel Shaft DC Hollow Shaft Gearmotor Models
-
Model Number
6073
Speed / RPM
23
Torque
702.0
Motor
1/3
Voltage
130 DC
Gear Ratio
108
-
Model Number
6072
Speed / RPM
45
Torque
364.0
Motor
1/3
Voltage
130 DC
Gear Ratio
56
-
Model Number
6071
Speed / RPM
56
Torque
292.0
Motor
1/3
Voltage
130 DC
Gear Ratio
45
-
Model Number
6070
Speed / RPM
93
Torque
176.0
Motor
1/3
Voltage
130 DC
Gear Ratio
27
-
Model Number
6077
Speed / RPM
23
Torque
524.0
Motor
1/4
Voltage
90 DC
Gear Ratio
108
-
Model Number
6076
Speed / RPM
45
Torque
272.0
Motor
1/4
Voltage
90 DC
Gear Ratio
56
-
Model Number
6075
Speed / RPM
56
Torque
218.0
Motor
1/4
Voltage
90 DC
Gear Ratio
45
-
Model Number
6074
Speed / RPM
93
Torque
131.0
Motor
1/4
Voltage
90 DC
Gear Ratio
27
-
Model Number
6081
Speed / RPM
23
Torque
416.0
Motor
1/5
Voltage
180 DC
Gear Ratio
108
-
Model Number
6080
Speed / RPM
45
Torque
216.0
Motor
1/5
Voltage
180 DC
Gear Ratio
56
-
Model Number
6079
Speed / RPM
56
Torque
173.0
Motor
1/5
Voltage
180 DC
Gear Ratio
45
-
Model Number
6078
Speed / RPM
93
Torque
104.0
Motor
1/5
Voltage
180 DC
Gear Ratio
27
-
Model Number
6085
Speed / RPM
23
Torque
702.0
Motor
1/3
Voltage
24 DC
Gear Ratio
108
-
Model Number
6084
Speed / RPM
45
Torque
364.0
Motor
1/3
Voltage
24 DC
Gear Ratio
56
-
Model Number
6083
Speed / RPM
56
Torque
292.0
Motor
1/3
Voltage
24 DC
Gear Ratio
45
-
Model Number
6082
Speed / RPM
93
Torque
176.0
Motor
1/3
Voltage
24 DC
Gear Ratio
27
-
Model Number
6089
Speed / RPM
23
Torque
416.0
Motor
1/5
Voltage
12 DC
Gear Ratio
108
-
Model Number
6088
Speed / RPM
45
Torque
216.0
Motor
1/5
Voltage
12 DC
Gear Ratio
56
-
Model Number
6087
Speed / RPM
56
Torque
173.0
Motor
1/5
Voltage
12 DC
Gear Ratio
45
-
Model Number
6086
Speed / RPM
93
Torque
104.0
Motor
1/5
Voltage
12 DC
Gear Ratio
27
