24A4-60P Series 90/130V Inline Planetary DC Gearmotor

Model 7008

SPECIFICATIONS

Rated Voltage	90/130V
Speed (rpm)	27/39
Rated Torque (lb-in)	72/113
Current (Amps)	0.56/0.81
Peak Torque (lb-in)	254
Motor HP	1/23 / 1/11
Form Factor	1.4 / 1.0
Gear Ratio	64
Radial Load (lbs)	5
Length XH (inch)	7.7
Weight (lbs)	5
Product Type	24A4BEPM-60P2
HPDecimal	0.0909
Connection Diagram	07410101

Product Brochure

Download PDF

CAD Drawings

STANDARD FEATURES

24A motor provides high starting torque, adjustable speed, and predictable performance.
Pre-seated motor brushes for quiet operation.
Class "F" insulation and ratings.
Unvented integral gearhousing, mounts in any orientation.
Permanently lubricated with high-performance lubricant.
Hardened steel planet gears with needle bearings for maximum life and performance.
Standard backlash < 60 arc minutes.

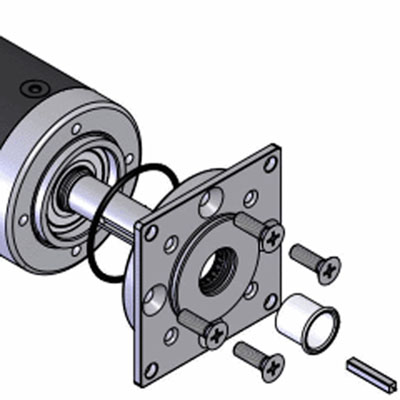

Environmental protection IP-66 (w/face seal kit installed).
