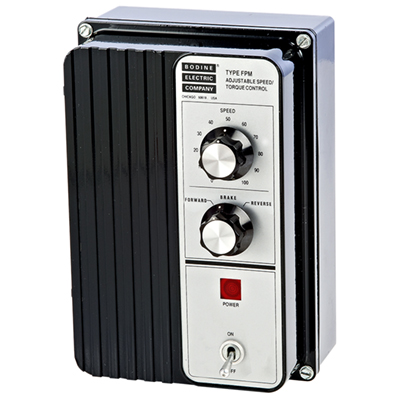

Filtered SCR DC Speed and Direction Control

Filtered SCR DC Speed and Direction Control

Application Information

  • Rated for continuous operation in 40° ambient with no additional heat sink.
  • Drives Bodine 130V Permanent Magnet DC Motors.
  • Drives 90V "SCR duty" and 130V "PWM duty" permanent magnet DC motors made by other manufacturers.

STANDARD FEATURES
  • Operates off 115 Volt AC line.
  • Filtered DC output for cooler motor operation, longer brush life, lower audible noise, wider speed range.
  • Dip switches to easily calibrate control for different motor sizes.
  • Line voltage and temperature compensation minimizes speed drift.
  • NEMA 12 enclosure for environmental protection.
  • Dynamic braking for quick stops.
  • Trim pots on PC board to adjust torque limit, minimum speed limit, maximum speed limit, acceleration time, and speed regulation.
  • Speed can be adjusted manually using speed pot mounted on enclosure.
  • Toggle switch on enclosure to turn AC power on/off.
  • Rotary switch on enclosure for direction.
  • Lamp on enclosure indicates AC power on.
  • Terminal block inside enclosure for motor connection.
  • Back EMF feedback maintains better than 2% speed regulation.
  • Fuse holders for line and motor inside enclosure (fuses included).
