Filtered SCR DC Basic Speed Control (open chassis)
Model 0810
SPECIFICATIONS
| HP Rating | 1/17 |
| Input Voltage (VAC 50/60 Hz) | 115 |
| Output Voltage (VDC) | 0-130 |
| Continuous Output Current (Amps) | 0.5 |
| Peak Output Current (Amps) | 1 |
| Form Factor | 1 |
| Weight (lbs) | 2.5 |
| Product Type | FPM-0810C |
| HPDecimal | 0.0588 |
STANDARD FEATURES
- Operates off 115 Volt AC line.
- Filtered DC output for cooler motor operation, longer brush life, lower audible noise, and wider speed range.
- Dip switches to easily calibrate control for different motor sizes.
- Line voltage and temperature compensation minimize speed drift.
- Trim pots on PC board to adjust torque limit, minimum speed limit, maximum speed limit, acceleration time, and speed regulation.
- Back EMF feedback maintains better than 2% speed regulation.
- 10k ohm remote speed pot and 24" connecting wire supplied with each control.
- Connections for optional user-supplied inhibit switch.
- Terminal block for quick line and motor connection.
- Plug-in connector for speed pot and optional usersupplied inhibit switch.
- Flexibility in adding plug-in interface boards. See optional accessories.
- Built-in line and motor fuseholders (both fuses supplied).
Application Information
- Rated for continuous operation in 50° C ambient with no additional heat sink.
- Designed to be mounted in separate enclosure supplied by user.
- Drives Bodine 130 Volt permanent magnet DC motors.
- Drives 90 Volt "SCR duty" and 130 Volt "PWM duty" permanent magnet DC motors made by other manufacturers.
This control can be used with the following models:
Ready to Purchase? Find a Distributor
All prices are in U.S. dollars. Specifications and prices are subject to change without notice. Web price excludes taxes, shipping, and handling charges. Terms & Conditions of Sale
Availability
Order Quantity: 1-25
Chat with us for Current Stock Availability
![Analog interface board [model 0888]](https://www.bodine-electric.com/core/files/bodineelectric/cart/1927b293eb92912eb551402f7756c334.jpg)

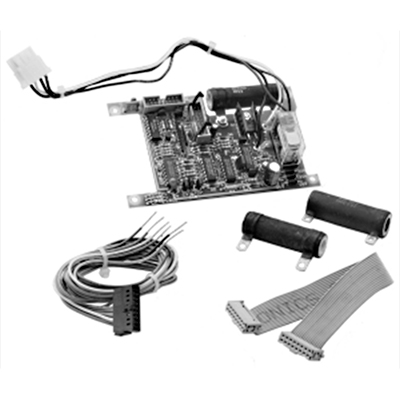

![Electronic direction and braking board; F-B-R kit [model 0890]](https://www.bodine-electric.com/core/files/bodineelectric/cart/27ba236c5beecf60c81656ac39e7d0d4.jpg)

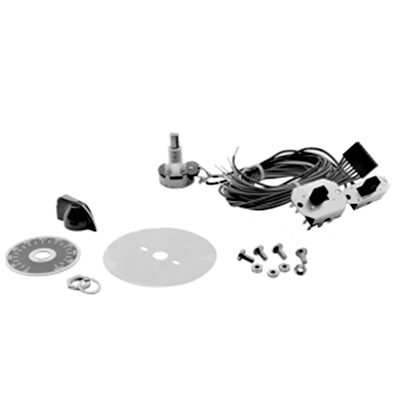

![Local / Remote switch kit for FPM controls [model 0893]](https://www.bodine-electric.com/core/files/bodineelectric/cart/bef5971b34ca76bceb0c6fb3b1fe423c.jpg)

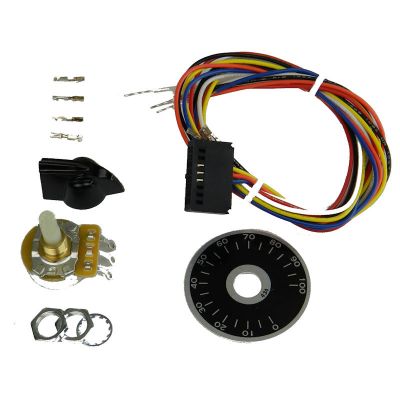

![Speed pot kit for FPM permanent magnet DC controls (chassis models only) [model 43300260]](https://www.bodine-electric.com/core/files/bodineelectric/cart/240485f2571057b6ba732ebdcf6f0c1c.jpg)
