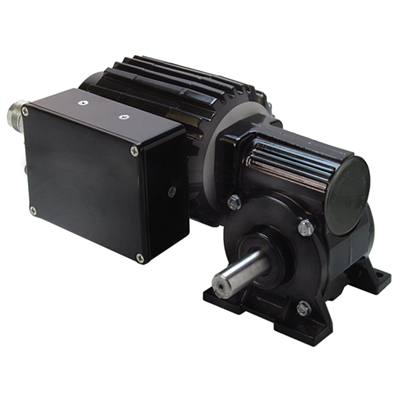

34B/FV-5N Series INTEGRAmotor BLDC Right Angle Gearmotor
Application Information
- The stock models in this INTEGRAmotor series will be phased out, and are no longer available for new applications
- The control accepts a digital PWM input from an external motion controller or PLC.
- Rated for +25°C (+77°F) ambient.
- Integral 24VDC control simplifies installation, minimizes EMI, and reduces wiring cost.
- PWM voltage control, amplifier enable, direction and dynamic braking inputs. Fault signal output.
Application Note: bodine_integramotor_34b_brochure (1).pdf
Optional Accessories
34B/FV-5N Series INTEGRAmotor BLDC Right Angle Gearmotor Models
-
Model Number
3780
Speed / RPM
63
Torque
104.0
Motor
1/4
Voltage
24 DC
Gear Ratio
40:1
-
Model Number
3781
Speed / RPM
83
Torque
95.0
Motor
1/4
Voltage
24 DC
Gear Ratio
30:1
-
Model Number
3782
Speed / RPM
125
Torque
73.0
Motor
1/4
Voltage
24 DC
Gear Ratio
20:1
-
Model Number
3783
Speed / RPM
250
Torque
44.0
Motor
1/4
Voltage
24 DC
Gear Ratio
10:1
-
Model Number
3784
Speed / RPM
500
Torque
24.0
Motor
1/4
Voltage
24 DC
Gear Ratio
5:1
