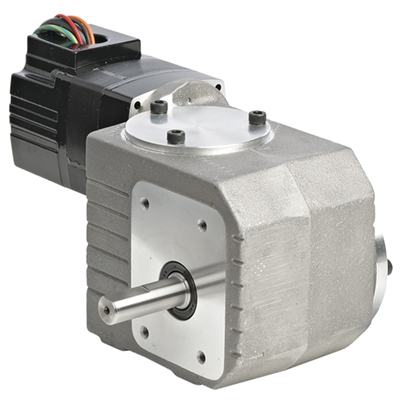

22B-3RD Series BLDC Right Angle Gearmotor

Search by Specification (Parameter Search)

Torque Units
Speed Units
Power Units

Search by Specification (Parameter Search)

Filter By:

Back

22B-3RD Series BLDC Right Angle Gearmotor

22B-3RD Series BLDC Right Angle Gearmotor

Application Information

  • Brushless motors require a control.
  • Performance ratings of 115° C winding, 25° C ambient, and no heat sink.
  • Face mount, or mounted from bottom of gearhead, standard.

Application Note: bodine_3rd_gearmotors_brochure (2).pdf

Optional Accessories

STANDARD FEATURES
  • Totally enclosed, non-ventilated IP-20 (IP-44, 130V models only).
  • Plug-in connectors facilitate electrical connections.
  • Electronic commutation provides quiet operation and low electro-magnetic interference (EMI) while eliminating brush maintenance and contamination from brush dirt.
  • Molded hall sensor assembly for accurate commutation.
  • Wound stator with exposed laminations provides excellent heat transfer and allows maximum power per motor frame size.
  • Rare earth magnets on the rotor provide high torque and low rotor inertia.
  • Aluminum endshields for high thermal efficiency and light weight.
  • Unvented gearhousing for universal horizontal mounting.
  • Industrial lip type seals on motor and output shafts.
  • Ball bearings on output shaft for increased radial load capacity and long life
  • Permanently lubricated, maintenance free operation
  • Double-reduction worm gearing allows for high gear ratios in compact package
  • Bronze worm gears for high shock load capability
  • Hardened and ground worm gear hobbed on the motor shaft for high strength and long life.
