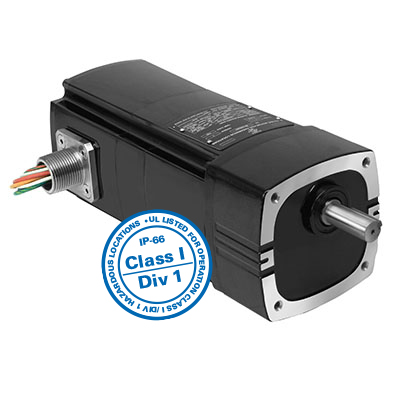

34B6-FX Series Parallel Shaft BLDC Gearmotors Class 1 Division 1
Search by Specification (Parameter Search)
Filter By:
34B6-FX Series Parallel Shaft BLDC Gearmotors Class 1 Division 1
Application Information
- Meet NEC Class I/Division 1 (Groups C and D) for use in Hazardous Locations
- Terminal or Junction Box required that meets CI/D1 standards
- Ambient rating: +40°C. Environmental protection: IP-66, TENV.
- Brushless DC, 8-pole motors require a control with 120° commutation
- Face mounting is standard
- Explosion-Proof Gearmotors; UL Listed for US and Canada
Optional Accessories
STANDARD FEATURES
- Gearmotors meet NEC Class I/Division 1 (Groups C and D, Temp Code T3C and T4A) for use in hazardous location environments where ignitable concentrations of flammable gases, vapors or liquids are likely to exist under normal operating conditions; Explosion-Proof Gearmotors; UL Listed for US and Canada
- Brushless DC, 8-pole motor for high torque, compact size and zero maintenance.
- Requires a BLDC control with 120° commutation
- Terminal or Junction Box required that meets CI/D1 standards
- Ambient rating +40°C max. Environmental protection: IP-66, TENV.
- Face mounting is standard
- Gearing meets or exceeds AGMA 9 standards for quiet operation
- Synthetic lubricant allows gearmotors to operate over a wide temperature range
- Unvented gearhousing for universal horizontal mounting. Lubricated for life.
- Industrial lip type seals on motor and output shafts.
- Needle bearings throughout for increased radial load capacity and long life.
- Selectively hardened all steel helical gearing for quietness and high output to size ratio.
34B6-FX Series Parallel Shaft BLDC Gearmotors Class 1 Division 1 Models
-
Model Number
3219
Speed / RPM
9
Torque
350.0
Motor
0.66
Voltage
24 DC
Gear Ratio
300:1
-
Model Number
3218
Speed / RPM
16
Torque
350.0
Motor
0.66
Voltage
24 DC
Gear Ratio
180:1
-
Model Number
3217
Speed / RPM
23
Torque
350.0
Motor
0.66
Voltage
24 DC
Gear Ratio
120:1
-
Model Number
3216
Speed / RPM
47
Torque
350.0
Motor
0.66
Voltage
24 DC
Gear Ratio
60:1
-
Model Number
3215
Speed / RPM
70
Torque
265.0
Motor
0.66
Voltage
24 DC
Gear Ratio
40:1
-
Model Number
3214
Speed / RPM
93
Torque
270.0
Motor
0.66
Voltage
24 DC
Gear Ratio
30:1
-
Model Number
3213
Speed / RPM
140
Torque
240.0
Motor
0.66
Voltage
24 DC
Gear Ratio
20:1
-
Model Number
3212
Speed / RPM
187
Torque
186.0
Motor
0.66
Voltage
24 DC
Gear Ratio
15:1
-
Model Number
3211
Speed / RPM
280
Torque
124.0
Motor
0.66
Voltage
24 DC
Gear Ratio
10:1
-
Model Number
3210
Speed / RPM
560
Torque
58.0
Motor
0.66
Voltage
24 DC
Gear Ratio
5:1
-
Model Number
3209
Speed / RPM
7
Torque
350.0
Motor
0.47
Voltage
12 DC
Gear Ratio
300:1
-
Model Number
3208
Speed / RPM
12
Torque
350.0
Motor
0.47
Voltage
12 DC
Gear Ratio
180:1
-
Model Number
3207
Speed / RPM
18
Torque
350.0
Motor
0.47
Voltage
12 DC
Gear Ratio
120:1
-
Model Number
3206
Speed / RPM
37
Torque
350.0
Motor
0.47
Voltage
12 DC
Gear Ratio
60:1
-
Model Number
3205
Speed / RPM
55
Torque
265.0
Motor
0.47
Voltage
12 DC
Gear Ratio
40:1
-
Model Number
3204
Speed / RPM
73
Torque
270.0
Motor
0.47
Voltage
12 DC
Gear Ratio
30:1
-
Model Number
3203
Speed / RPM
110
Torque
240.0
Motor
0.47
Voltage
12 DC
Gear Ratio
20:1
-
Model Number
3202
Speed / RPM
147
Torque
181.0
Motor
0.47
Voltage
12 DC
Gear Ratio
15:1
-
Model Number
3201
Speed / RPM
220
Torque
121.0
Motor
0.47
Voltage
12 DC
Gear Ratio
10:1
-
Model Number
3200
Speed / RPM
440
Torque
58.0
Motor
0.47
Voltage
12 DC
Gear Ratio
5:1
