Model 1110 34B-WX Series Parallel Shaft BLDC Gearmotor
Search by Specification (Parameter Search)
Filter By:
34B-WX Series Parallel Shaft BLDC Gearmotor
Model 1110
SPECIFICATIONS
| Rated Voltage | 130 |
| Speed (rpm) | 455 |
| Motor HP | 1/5 |
| Current (Amps) | 1.4 |
| Gear Ratio | 5.5 |
| Rated Torque (lb-in) | 21 |
| Radial Load (lbs) | 173 |
| Length XH (inch) | 6.5 |
| Weight (lbs) | 9 |
| Product Type | 34B3FEBL-WX2 |
| Accessory Shaft | YES |
| HPDecimal | 0.2 |
| Connection Diagram | 07410268 |
CAD Drawings
Wiring Diagram
Safety Data Sheets
STANDARD FEATURES
- The 34B motor provides high starting torque, adjustable speed, and predictable performance.
- Brushless DC (ECM) motors require zero maintenance.
- Winding options are 130 VDC or 24 VDC. All models are TENV.
- Unvented gearhousing. Lubricated for life. Synthetic lubricant.
- Industrial lip type seals on motor and output shafts.
- Needle bearings throughout for increased radial load capacity and long life.
- All steel helical gears. Gearing meets or exceeds AGMA 9 standard for maximum life and quiet operation.
- IP-20 (24V) models, IP-40 (130V) stock models.
Ready to Purchase? Find a Distributor
All prices are in U.S. dollars. Specifications and prices are subject to change without notice. Web price excludes taxes, shipping, and handling charges. Terms & Conditions of Sale
Availability
Order Quantity: 1-25
Chat with us for Current Stock Availability

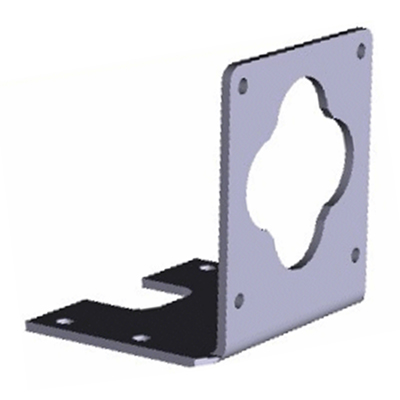

![L-Bracket Kit for W and WX gearmotors [model 0970]](https://www.bodine-electric.com/core/files/bodineelectric/cart/3cef816e8e3d333d534d91af01572e43.jpg)

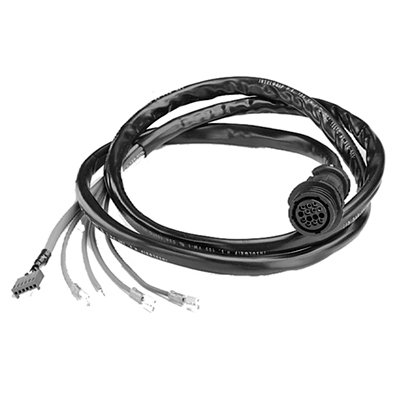

![6-foot Cable Kit for Chassis BLDC Controls [model 3983]](https://www.bodine-electric.com/core/files/bodineelectric/cart/2283507d16025dbd17a7f88029d03ed1.jpg)
