Model 3660 22B-Z Series Parallel Shaft BLDC Gearmotor
Search by Specification (Parameter Search)
Filter By:
22B-Z Series Parallel Shaft BLDC Gearmotor
Model 3660
SPECIFICATIONS
| Speed (rpm) | 83 |
| Rated Torque (lb-in) | 52 |
| Rated Voltage | 24V |
| Amps (24V Model) | 4.4 |
| Amps (130V Model) | — |
| Peak Torque (lb-in) | 115 |
| Motor HP | 1/11 |
| Gear Ratio | 30 |
| Radial Load (lbs) | 125 |
| Length XH (inch) | 7.29 |
| Weight (lbs) | 5.25 |
| Product Type | 22B3BEBL-Z3 |
| Accessory Shaft | YES |
| HPDecimal | 0.0909 |
| Connection Diagram | 07410268 |
CAD Drawings
Wiring Diagram
Safety Data Sheets
STANDARD FEATURES
- Brushless motor for high torque, smaller size, and no maintenance.
- Unvented gearhousing for universal horizontal mounting.
- Industrial lip type seals on motor and output shafts.
- Needle bearings on output shaft for increased radial load capacity and long life.
- Permanently lubricated gearing utilizing oil for long life.
- Wide reinforced thermoplastic helical gear on input stage for quietness and wide hardened steel spur gears on subsequent stages for high output torque and long life.
- Helical pinion accurately cut on motor shaft for maximum strength and minimum noise.
Ready to Purchase? Find a Distributor
All prices are in U.S. dollars. Specifications and prices are subject to change without notice. Web price excludes taxes, shipping, and handling charges. Terms & Conditions of Sale
Availability
Order Quantity: 1-25
Chat with us for Current Stock Availability

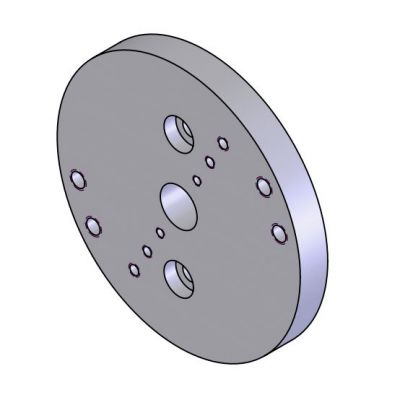

![22/34B Adaptor Plate Kit [model 0993]](https://www.bodine-electric.com/core/files/bodineelectric/cart/3b5dedb49cdfab1f4b283c50b1d8bb70.jpg)
