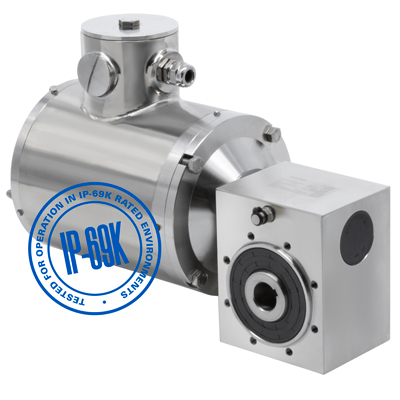

56R1-50JW/H Series 3-Phase AC Inverter Duty Stainless Steel IP-69K Right Angle Hollow Shaft Gearmotor
Search by Specification (Parameter Search)
Filter By:
56R1-50JW/H Series 3-Phase AC Inverter Duty Stainless Steel IP-69K Right Angle Hollow Shaft Gearmotor
Application Information
- The gearmotors in this series feature 230/460VAC, 60 Hz, 3-phase inverter-duty windings.
- Gearmotors mount via Face or base of gearhead. Optional accessories available.
- See our dimension drawing, page 2, for details on mounting orientation/install requirements.
- The gearmotors are compatible with a wide selection of AC speed controls (VFDs). Make sure to use an appropriate control enclosure for your application.
Optional Accessories
- Cover Kit / Stainless Steel / for 56R1-50JW/H [model 0943]
- Flange Mount Kit / Stainless Steel / for 56R1-50JW/H [model 0946]
- Shaft Kit 1-inch / Stainless Steel / double-extension [model 0945]
- Shaft Kit 1-inch / Stainless Steel / single-extension [model 0944]
- Torque Arm Kit / Stainless Steel / for 56R1-50JW/H [model 0942]
STANDARD FEATURES
- Totally Enclosed IP-69K rating. Meets EU Hygienic standard for food machinery.
- Stainless Steel construction throughout. Sealed against water and dust ingress.
- 230/460VAC, 1/2 HP inverter-duty, 3-phase winding
- Large water tight terminal box in 12 o’clock position for easy access.
- Gearmotors mount via face or base of gearhead. Optional mounting accessories available.
- See our dimension drawing, INFM0441, page 2, for details on mounting orientation/install instructions.
- Food grade lubricant
- The gearmotors are compatible with a wide selection of AC speed controls (VFDs). Make sure to use an appropriate control enclosure for your application.
- The terminal box can be rotated by rotating the motor in 90-degree increments.
56R1-50JW/H Series 3-Phase AC Inverter Duty Stainless Steel IP-69K Right Angle Hollow Shaft Gearmotor Models
-
Model Number
9001
Speed / RPM
176
Torque
158.0
Motor
1/2
Voltage
230 AC / 460 AC
Gear Ratio
10
-
Model Number
9002
Speed / RPM
88
Torque
274.0
Motor
1/2
Voltage
230 AC / 460 AC
Gear Ratio
20
-
Model Number
9003
Speed / RPM
59
Torque
368.0
Motor
1/2
Voltage
230 AC / 460 AC
Gear Ratio
30
-
Model Number
9004
Speed / RPM
44
Torque
499.0
Motor
1/2
Voltage
230 AC / 460 AC
Gear Ratio
40
-
Model Number
9005
Speed / RPM
35
Torque
638.0
Motor
1/2
Voltage
230 AC / 460 AC
Gear Ratio
50
-
Model Number
9006
Speed / RPM
29
Torque
594.0
Motor
1/2
Voltage
230 AC / 460 AC
Gear Ratio
60
