AC Right Angle Gearmotors
The output shaft of right-angle gear motors is at a 90° angle from the motor shaft. Bodine gearmotors feature either worm gearing or hypoid gearing. Worm gearing is a proven and economical solution for applications that require high-speed reductions in limited space, and with very smooth and quiet operation. Worm gears have inherent self-locking ability depending on design and ratio. All Bodine worm-gear gearboxes are permanently lubricated with high-peformance lubricant, and feature bronze gears for high shock load capability. The worm gear is hardened and ground for high strength and long life.
Bodine AC Right-Angle Gearmotors feature economical, low-maintenance, simple-to-use AC motors. Bodine offers four AC motor frame sizes (30R, 34R, 42R and 48R) with many winding options designed for either continuous duty or start-stop applications. Non-synchronous and synchronous windings are available.
Bodine offers eight right-angle gearboxes: type 3RD, 3N, 3F, 5F, 5L, 5N, GB and 5H. Most of these gearheads are also available in hollow shaft configuration.
All Bodine gearhead-motor combinations are designed to work together as one integrated unit, eliminating the chance of leakage or misalignment. These gearheads step down the motor speed (typically from 1700 or 3400 rpm) to as low as 0.4 rpm, and as high as 340 rpm. While the amount of output torque they provide is dependant on the gear ratio the Bodine family of AC right-angle gearmotors deliver torque from 0.8 to 380 lb-in. Inverter drives (also called variable frequency drives) allow inverter-duty rated AC gear motors run at variable speeds. Typical applications include medical and laboratory equipment, labeling and packaging machines, conveyors and a wide range of factory automation solutions.
- Maintenance free operation
- Compact design is ideal for application where space is limited
- Self-locking
- Hollow shaft models available
- Face or base mounting options
Search by Specification (Parameter Search)
Filter By:
-
- 56R1-50JW/H Series 3-Phase AC Inverter Duty Stainless Steel IP-69K Right Angle Hollow Shaft Gearmotor
- Hypoid Series 42R6 3-Phase AC Inverter-Duty Right Angle Hollow Shaft Gearmotors
- 30R-3RD Series AC Right Angle Gearmotor
- 30R-3RD Series 3-Phase AC Inverter Duty Right Angle Gearmotor
- 30R-3N Series 3-Phase AC Inverter Duty Right Angle Gearmotor
- 34R-3F Series AC Right Angle Gearmotor
- Metric 34R-3F Series AC Right Angle Gearmotor
- 34R-5F Series AC Right Angle Gearmotor
- Metric 34R-5F Series AC Right Angle Gearmotor
- 34R-5R and 42R-5L Series AC Right Angle Gearmotor
- 42R-5N Series AC Right Angle Gearmotor
- 42R-5N Series 3-Phase AC Inverter Duty Right Angle Gearmotor
- Metric 42R-5N Series AC Right Angle Gearmotor
- Metric 42R-5F Series AC Right Angle Gearmotor
- 42R-5L/H Series 3-Phase AC Inverter Duty Right Angle Hollow Shaft Gearmotor
- 42R6-5L/H Series AC PSC 3-Wire Right Angle Hollow Shaft Gearmotor - 3/4-Inch
- 42R-GB Series AC Right Angle Gearmotor
- 42R-GB Series 3-Phase AC Inverter Duty Right Angle Gearmotor
- 42R-GB/H Series AC Right Angle Hollow Shaft Gearmotor
- 42R-GB/H Series 3-Phase AC Inverter Duty Right Angle Hollow Shaft Gearmotor
- Metric 42R-GB Series AC Right Angle Gearmotor
- 48R-5H Series 3-Phase AC Inverter Duty Right Angle Gearmotor
56R1-50JW/H Series 3-Phase AC Inverter Duty Stainless Steel IP-69K Right Angle Hollow Shaft Gearmotor
Speed / RPM: 29 to 176
Torque: 158 to 594 lb-in
Power / HP: 1/2

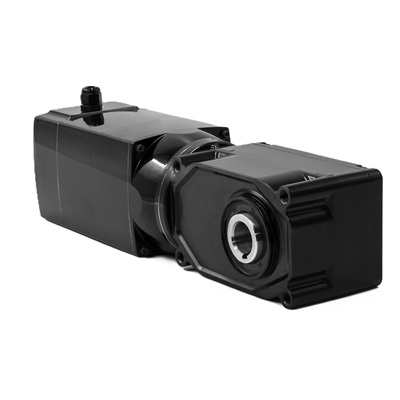

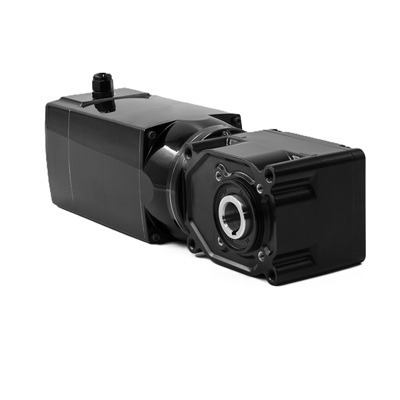

Hypoid Series 42R6 3-Phase AC Inverter-Duty Right Angle Hollow Shaft Gearmotors
Speed / RPM: 7 to 340
Torque: 53 to 2328 lb-in
Power / HP: 1/3
30R-3RD Series AC Right Angle Gearmotor
Speed / RPM: 0.4 to 7.8
Torque: 88 to 148 lb-in
Power / HP: 1/30 to 1/27
30R-3RD Series 3-Phase AC Inverter Duty Right Angle Gearmotor
Speed / RPM: 0.5 to 8.5
Torque: 95 to 148 lb-in
Power / HP: 1/25 to 1/17
30R-3N Series 3-Phase AC Inverter Duty Right Angle Gearmotor
Speed / RPM: 28 to 340
Torque: 8 to 37 lb-in
Power / HP: 1/17
34R-3F Series AC Right Angle Gearmotor
Speed / RPM: 28 to 170
Torque: 16 to 37 lb-in
Power / HP: 1/15
Metric 34R-3F Series AC Right Angle Gearmotor
Speed / 1/min: 35 to 140
Torque: 2.1 to 4.2 Nm
Power / Watts: 49.71

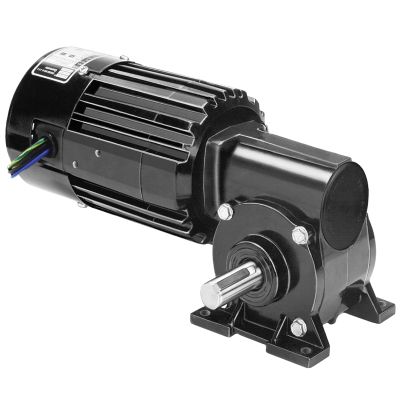

34R-5F Series AC Right Angle Gearmotor
Speed / RPM: 19/23 to 280/340
Torque: 19/16 to 121/102 lb-in
Power / HP: 1/9

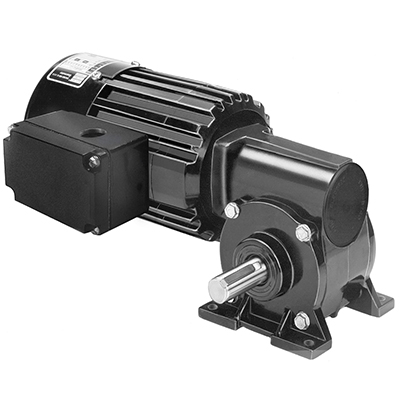

Metric 34R-5F Series AC Right Angle Gearmotor
Speed / 1/min: 23 to 140
Torque: 2.4 to 8.1 Nm
Power / Watts: 49.71
34R-5R and 42R-5L Series AC Right Angle Gearmotor
Speed / RPM: 29 to 170
Torque: 18 to 77 lb-in
Power / HP: 1/15 to 1/8
42R-5N Series AC Right Angle Gearmotor
Speed / RPM: 38 to 340
Torque: 23 to 113 lb-in
Power / HP: 1/6 to 1/4
42R-5N Series 3-Phase AC Inverter Duty Right Angle Gearmotor
Speed / RPM: 23 to 340
Torque: 54 to 121 lb-in
Power / HP: 3/8
Metric 42R-5N Series AC Right Angle Gearmotor
Speed / 1/min: 32 to 65
Torque: 9.0 to 12.8 Nm
Power / Watts: 99.43 to 149.14
Metric 42R-5F Series AC Right Angle Gearmotor
Speed / 1/min: 35 to 140
Torque: 3.6 to 10.5 Nm
Power / Watts: 82.86
42R-5L/H Series 3-Phase AC Inverter Duty Right Angle Hollow Shaft Gearmotor
Speed / RPM: 23 to 340
Torque: 54 to 121 lb-in
Power / HP: 3/8
42R6-5L/H Series AC PSC 3-Wire Right Angle Hollow Shaft Gearmotor - 3/4-Inch
Speed / RPM: 23 to 340
Torque: 38 to 121 lb-in
Power / HP: 1/4
42R-GB Series AC Right Angle Gearmotor
Speed / RPM: 5.9 to 28
Torque: 209 to 380 lb-in
Power / HP: 1/6 to 1/4
42R-GB Series 3-Phase AC Inverter Duty Right Angle Gearmotor
Speed / RPM: 6 to 28
Torque: 230 to 380 lb-in
Power / HP: 3/8
42R-GB/H Series AC Right Angle Hollow Shaft Gearmotor
Speed / RPM: 5.9 to 14
Torque: 290 to 380 lb-in
Power / HP: 1/6
42R-GB/H Series 3-Phase AC Inverter Duty Right Angle Hollow Shaft Gearmotor
Speed / RPM: 6 to 28
Torque: 230 to 380 lb-in
Power / HP: 3/8
Metric 42R-GB Series AC Right Angle Gearmotor
Speed / 1/min: 5 to 23
Torque: 23.1 to 42.9 Nm
Power / Watts: 99.43
48R-5H Series 3-Phase AC Inverter Duty Right Angle Gearmotor
Speed / RPM: 35 to 170
Torque: 178 to 296 lb-in
Power / HP: 3/4
