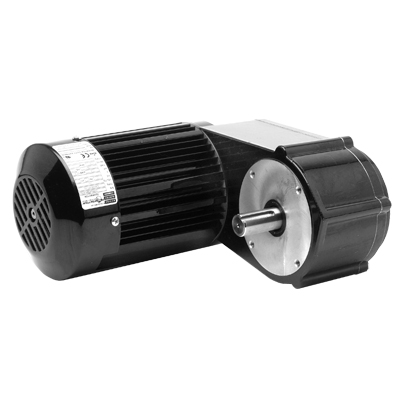

42R-HG Series Parallel Shaft AC 3-Phase Inverter Duty Gearmotor
Search by Specification (Parameter Search)
Filter By:
42R-HG Series Parallel Shaft AC 3-Phase Inverter Duty Gearmotor
Application Information
- Offset gearhead provides flexible mounting and high torque in a small package.
- Face mounting is standard.
- We offer most standard models with either 230 VAC, 60Hz, 3-phase, or 230/460 VAC, 60 Hz, 3-phase winding options.
Optional Accessories
- Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 1984]
- Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 0984]
- Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors [model 0986]
STANDARD FEATURES
- Totally enclosed IP-20 rating. IP-44 with optional t-box kit installed.
- Unvented gearhousing for universal horizontal mounting.
- Industrial lip type seals on motor and output shafts.
- Needle bearings for increased radial load capacity and long life, large ball bearings on the output shaft.
- Permanently lubricated with high-performance lubricant.
- Hardened helical and spur gearing for quietness and high output to size ratio.
42R-HG Series Parallel Shaft AC 3-Phase Inverter Duty Gearmotor Models
-
Model Number
2245
Speed / RPM
16
Torque
1020.0
Motor
3/8
Voltage
230 AC
Gear Ratio
108:1
-
Model Number
2247
Speed / RPM
30
Torque
610.0
Motor
3/8
Voltage
230 AC
Gear Ratio
56:1
-
Model Number
2248
Speed / RPM
38
Torque
490.0
Motor
3/8
Voltage
230 AC
Gear Ratio
45:1
-
Model Number
2249
Speed / RPM
63
Torque
294.0
Motor
3/8
Voltage
230 AC
Gear Ratio
27:1
