Model 1685 Metric 42R-E Series Parallel Shaft AC Gearmotor
Search by Specification (Parameter Search)
Filter By:
Metric 42R-E Series Parallel Shaft AC Gearmotor
Model 1685
SPECIFICATIONS
| Speed (rpm) | 23 |
| Rated Torque (Nm) | 33.6 |
| Rated Torque (lb-in) | 297 |
| Power (Watts) | 100 |
| Power (HP) | 1/7.5 |
| Volts | 230 |
| Hz | 50 |
| Phases | 1 |
| Amps | .78 |
| Gear Ratio | 60 |
| Radial Load (N) | 900 |
| Radial Load (lbs) | 200 |
| Length XH (mm) | 231 |
| Length XH (inch) | 9.08 |
| Weight (kg) | 6.8 |
| Weight (lbs) | 15.3 |
| Connection Diagram | 07410021 |
| Capacitor Part Number | 49401154 |
| Product Type | 42R5BFCI-E3 |
| HP Decimal | 0.1333 |
CAD Drawings
Wiring Diagram
Safety Data Sheets
- Download PDF
Optional Accessories
L-Bracket Kit for E, F and FX gearmotors [model 0969]
Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 0984]
L-Bracket Mounting Kit for metric type E/F gearmotors [model 1969]
Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 1984]
Capacitor; plastic box type; 7.5MFD 370V [Item 49401154]
Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors [model 0986]
STANDARD FEATURES
- Metric mounting threads and metric drive shaft dimensions.
- Unvented gearhousing.
- Industrial lip type seals on motor and output shafts.
- Needle bearings throughout for increased radial load capacity and long life.
- Permanently lubricated gearing utilizing semi-fluid grease for long life.
- Selective hardened helical gearing for quietness and high output to size ratio.
Ready to Purchase? Find a Distributor
All prices are in U.S. dollars. Specifications and prices are subject to change without notice. Web price excludes taxes, shipping, and handling charges. Terms & Conditions of Sale
Availability
Order Quantity: 1-25
Chat with us for Current Stock Availability
-
L-Bracket Kit for E, F and FX gearmotors [model 0969]View
![L-Bracket Kit for E, F and FX gearmotors [model 0969]](https://www.bodine-electric.com/core/files/bodineelectric/cart/fd28708199b8c1f309edce2b938801a1.jpg)
-
Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 0984]View
![Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 0984]](https://www.bodine-electric.com/core/files/bodineelectric/cart/9dae24061421d55b465c7bc0f275be43.jpg)
-

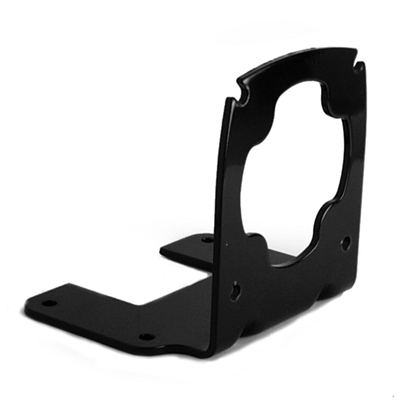

L-Bracket Mounting Kit for metric type E/F gearmotors [model 1969]View
