Model 1572 Metric 30R-D Series Parallel Shaft AC Gearmotor
Search by Specification (Parameter Search)
Filter By:
Metric 30R-D Series Parallel Shaft AC Gearmotor
Model 1572
SPECIFICATIONS
| Speed (rpm) | 78 |
| Rated Torque (Nm) | 1.6 |
| Rated Torque (lb-in) | 14 |
| Power (Watts) | 18 |
| Power (HP) | 1/41 |
| Volts | 230 |
| Hz | 50 |
| Phases | 1 |
| Amps | 0.21 |
| Gear Ratio | 18 |
| Radial Load (N) | 285 |
| Radial Load (lbs) | 65 |
| Length XH (mm) | 139.2 |
| Length XH (inch) | 5.5 |
| Weight (kg) | 2.8 |
| Weight (lbs) | 6.3 |
| Connection Diagram | 07410021 |
| Capacitor Part Number | 49400091 |
| Product Type | 30R2BECI-D3 |
| HPDecimal | 0.0243 |
CAD Drawings
Wiring Diagram
Safety Data Sheets
- Download PDF
Optional Accessories
L-Bracket Kit for Metric type 30R, 33A, 30R-D, 24A-D, 24A-Z Products [model 1968]
Die cast metric terminal box with terminal block for 30R motors and gearmotors [model 1982]
Capacitor; plastic box type; 1.3 MFD / 450V [Item 49400091]
L-Bracket Kit for 30R and 33A motors, 30R-D, 22B-D, 22B-Z, 24A-D, 24A-Z, and 33A-Z gearmotors [model 5968]
Die cast terminal box for 30R motors and gearmotors [model 5982]
STANDARD FEATURES
- Metric mounting threads and metric drive shaft dimensions.
- Totally Enclosed, non-ventilated IP-20 rating.
- Class "B" insulation system.
- Aluminum end shields for high thermal efficiency and light weight.
- Unvented gearhousing.
- Industrial lip type seals on motor and output shafts.
- Needle bearings throughout for increased radial load capacity and long life.
- Permanently lubricated gearing.
- Reinforced thermoplastic helical primary gear for quietness and hardened steel spur gearing on subsequent stages for high output torque and long life.
- Helical pinion accurately cut on motor shaft for maximum strength and minimum noise.
Ready to Purchase? Find a Distributor
All prices are in U.S. dollars. Specifications and prices are subject to change without notice. Web price excludes taxes, shipping, and handling charges. Terms & Conditions of Sale
Availability
Order Quantity: 1-25
Chat with us for Current Stock Availability
-
L-Bracket Kit for Metric type 30R, 33A, 30R-D, 24A-D, 24A-Z Products [model 1968]View
![L-Bracket Kit for Metric type 30R, 33A, 30R-D, 24A-D, 24A-Z Products [model 1968]](https://www.bodine-electric.com/core/files/bodineelectric/cart/12594b4df52d9d64a6f780054167e49e.jpg)
-

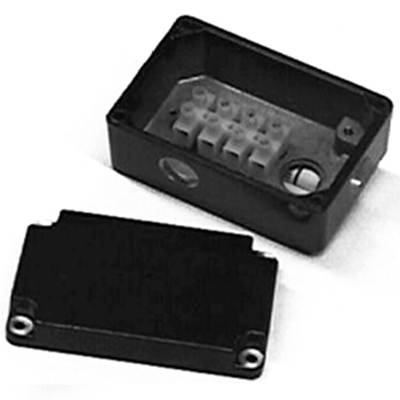

Die cast metric terminal box with terminal block for 30R motors and gearmotors [model 1982]View
![Die cast metric terminal box with terminal block for 30R motors and gearmotors [model 1982]](https://www.bodine-electric.com/core/files/bodineelectric/cart/50efffd472ab5f10a08d5b41ae548584.jpg)
-
Capacitor; plastic box type; 1.3 MFD / 450V [Item 49400091]View
![Capacitor; plastic box type; 1.3 MFD / 450V [Item 49400091]](https://www.bodine-electric.com/core/files/bodineelectric/cart/173601dedead3f13467f61c1dfc62491.jpg)
-

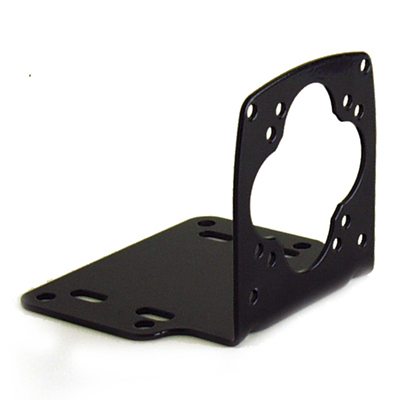

L-Bracket Kit for 30R and 33A motors, 30R-D, 22B-D, 22B-Z, 24A-D, 24A-Z, and 33A-Z gearmotors [model 5968]View
![L-Bracket Kit for 30R and 33A motors, 30R-D, 22B-D, 22B-Z, 24A-D, 24A-Z, and 33A-Z gearmotors [model 5968]](https://www.bodine-electric.com/core/files/bodineelectric/cart/3f2a20fa7a090fa7f5c46bb3fff57bda.jpg)
-

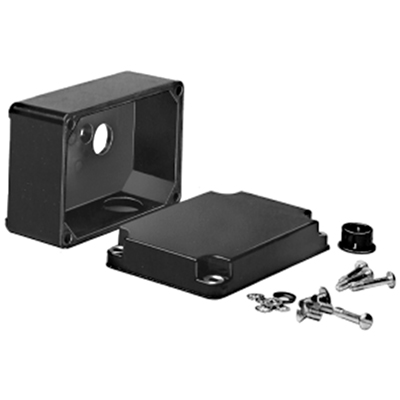

Die cast terminal box for 30R motors and gearmotors [model 5982]View
