Type HG, CG and Hypoid High Torque Gearmotors Deliver Over 1000 lb-in.

Bodine type HG, CG and hypoid gearmotors deliver up to 2,370 lb-in (268 Nm) continuous torque. These gearmotors drive heavy-duty conveyor systems, medical equipment, food processing and factory automation.

Bodine hypoid gearmotors are Ideal for applications that require higher torque and lower power consumption than gearheads utilizing worm gears can provide: conveyors, pumps, packaging and other industrial automation equipment.

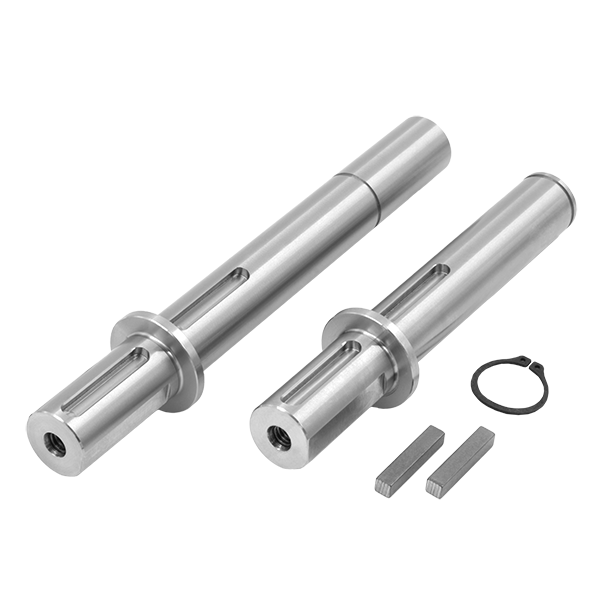

Now available with a hollow shaft option, the Bodine type HG and HG/H gearmotors are shorter in length but taller than comparable parallel shaft gearmotors. The offset design allows the gearmotors to deliver high torque for their size, and the large center distance between the gearbox and the motor enables these units to be fitted with dual drive shafts. Bodine type HG/H hollow shaft gearmotors can be connected directly to the driven load, eliminating the need for expensive shaft couplings and mounting hardware.

The rugged type CG gearmotor features a heavy-duty aluminum gearhousing and selectively hardened gearing. AC, 3-phase, inverter-duty, or permanent magnet DC (PMDC) models are available with speeds CG: 28-125 rpm and gear ratios of 20-60:1.

High Torque Application - Belt-Type Chip Conveyor Systems — Belt-Type Chip Conveyor Systems

High Torque Application - Patient Mobility Products — Patient Mobility Products

High Torque Application - Boat Lift / Outdoor Marine Equipment — Boat Lift / Outdoor Marine Equipment

High Torque Application - Automated Watering Systems — Automated Watering Systems

Type 25H2 and 30H3 Hypoid Gearmotors

The high torque and efficiency of hypoid gearmotors make them an ideal drive solution for applications such as conveyors, gates, packaging and other industrial automation equipment that require compact size, lower energy consumption and cooler operation.

AC, DC, and brushless DC models of the type 25H2 and 30H3 hollow shaft gearmotors are available. Gear ratios from 5:1 to 240:1 with speeds from 7 to 500 rpm and rated torque up to 2370 lb-in (268 Nm).

Hypoid Gearmotors

Type 42R-HG/H and 33A-HG/H Offset Hollow Shaft Gearmotors for Maximum Flexibility

Bodine’s new HG/H hollow shaft geared motors optimize mounting space, simplify installation, and reduce the number of component parts. They can be directly connected to the driven load eliminating expensive shaft couplings and mounting hardware that can be unsafe, bulky, and present alignment issues. These hollow shaft gearmotors offer left- or right-hand face mounts for maximum application flexibility.

The type HG/H hollow shaft gearmotors are available with four standard AC inverter-duty models and 20 PMDC models. Gear ratios from 27:1 to 108:1 with speeds from 2 to 93 rpm and rated torque up to 1020 lb-in (115 Nm).

Variable Speed AC PMDC AC PDF PMDC PDF

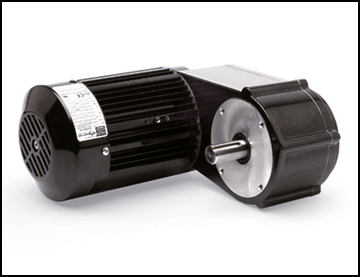

Type 42R-HG and 33A-HG Offset Parallel Shaft Gearmotors for Tight Spaces

The offset parallel shaft HG gearhead provides flexible mounting and high torque in a small package. Typical applications include conveyor systems, food processing equipment, and factory automation.

The type HG gearmotors are available with Bodine's 42R AC induction (fixed or variable speed) and 33A permanent magnet DC motors. The HG gearmotor design is offered in gear ratios from 27:1 to 108:1. The gearmotor produces up to 1,020 lb-in. (115 Nm) continuous torque and output speeds from 2 to 93 RPM.

Fixed Speed AC Variable Speed AC PMDC AC PDF PMDC PDF

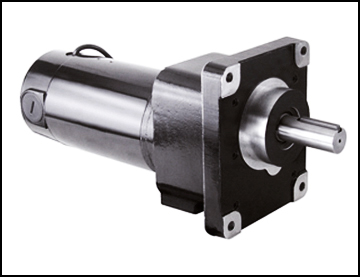

Type CG Parallel Shaft Gearmotors

Our variable speed type CG gearmotors are available from stock with either AC inverter-duty or permanent magnet DC windings. The CG gearmotors are designed for applications such as heavy-duty conveyor systems, medical equipment, food processing and factory automation, where long life and high load capacity are critical. The integral motor-gearhead design allows the CG gearmotors to deliver up to 1,000 lb-in. (113 Nm) of torque in a competitively priced and high-performance package.

AC PMDC Download PDF
