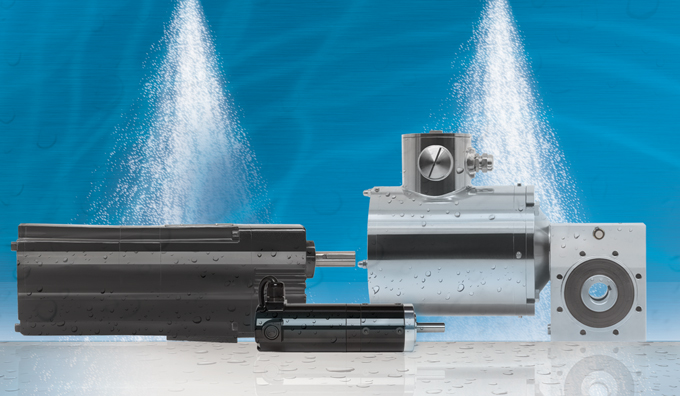

Gearmotors Designed for Demanding Environments
When your design must run flawlessly in harsh environments, Bodine gearmotors designed for higher IP ratings can handle the job. Ideal for demanding outdoor applications as well as food processing and pharmaceutical equipment, our extensive line of AC, DC, and brushless DC products with IP ratings of IP-44 through IP-69K perform where other gearmotors fail.Talk to an Application Engineer.
Gearmotors for demanding applications (PDF)
Featured Applications:
What are IP Ratings
The Ingress Protection (IP) rating is a measure of how a gearmotor is affected by water and solid particles. They usually have two numbers: the first indicates the level of protection against solid material, the second against liquids. IP ratings are determined by the international standard EN 60529 (British BS EN 60529: 1992 – Degrees of protection provided by enclosures (IP Code) and European IEC 60509: 1989 – Degrees of protection provided by enclosures (IP Code).
Example: A gearmotor that is rated IP-69K is dust tight and is protected from close-range, high-pressure, high-temperature water jets.
Solid Protection
|
|
0 | Non protected. |
 |
1 | Protected against a solid object greater than 500 mm, such as a hand. |
 |
2 | Protected against a solid object greater than 12 mm, such as a finger. |
 |
3 | Protected against a solid object greater than 2.5 mm, such as a screwdriver. |
 |
4 | Protected against a solid object greater than 1 mm, such as most screws and wires. |
 |
5 | Dust protected. Prevents ingress of dust sufficient to cause harm. |
 |
6 | Dust tight. No ingress of dust. |
Water Protection
|
|
0 | Non protected. |
 |
1 | Protected against vertical dripping water. . |
 |
2 | Protected against vertical dripping water when tilted up 15°. |
 |
3 | Protected against spraying water at an angle of 60°. |
 |
4 | Protected against splashes of water at any angle. |
 |
5 | Protected against low pressure water jets from any direction. |
 |
6 | Protected against high pressure water jets from any direction. |
 |
7 | Protected against the effects of immersion in water between 15cm and 1m for 30 minutes. |
 |
8 | Protected against the effects of immersion in water under pressure for long periods. |
 |
9 | Protected from close-range, high-pressure, high-temperature water jets. |

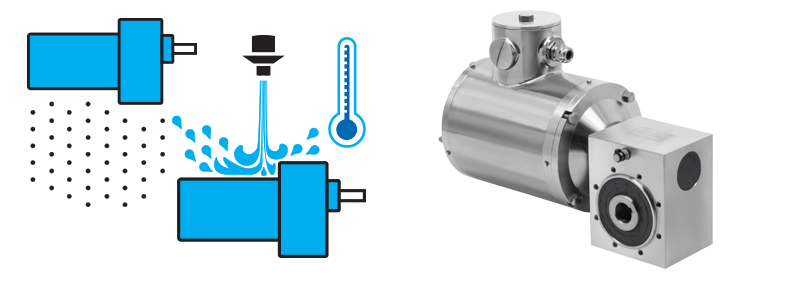

IP-69K AC Stainless Steel
Applications: clean applications such as food processing and pharmaceutical equipment where hygiene, long operating life, and low maintenance are critical.
| Speed (RPM) | Torque Lb-in (Nm) | Power Hp (Watts) | Gear Ratio |
| Up to 264 | Up to 594 (67) | 1/2 (368) | 10:1 to 60:1 |
IP-66 Explosion-Proof AC
Applications: washdown and outdoor applications found in CID1 hazardous locations such as oil & gas fields and pharmaceutical factories.
| Speed (RPM) | Torque Lb-in (Nm) | Power Hp (Watts) | Gear Ratio |
| 5.3 to 320 | Up to 350 (40) | 1/4 (184) | 5:1 to 300:1 |

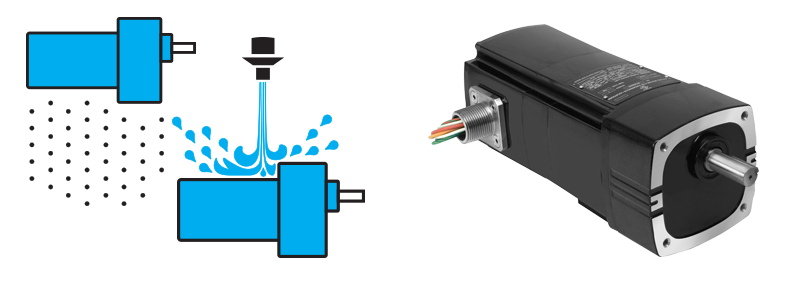

IP-66 Explosion-Proof BLDC
Applications: washdown and outdoor applications found in CID1 hazardous locations such as oil & gas fields and pharmaceutical factories.
| Speed (RPM) | Torque Lb-in (Nm) | Power Hp (Watts) | Gear Ratio |
| 7 to 560 | Up to 350 (40) | Up to 0.66 (492) | 5:1 to 300:1 |

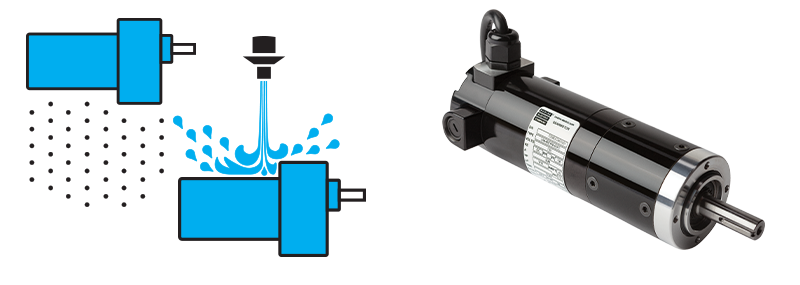

IP-66 DC Planetary
Applications: washdown conveyors, pumps, and packaging machinery, and other industrial automation equipment found in factory, rooftop or agricultural settings.
| Speed (RPM) | Torque Lb-in (Nm) | Power Hp (Watts) | Gear Ratio |
| Up to 658 | Up to 226 (25.5) | Up to 1/11 (67) | 3.8:1 to 162.1:1 |

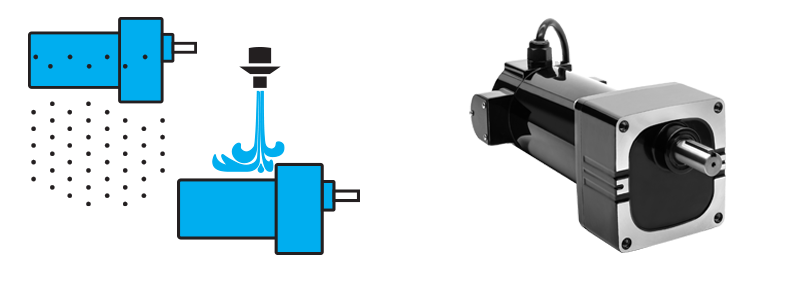

IP-55 DC 12VDC
Applications: battery-powered equipment used outdoors with some additional protection from rain, such as a chemical injection pump in an oil & gas field.
| Speed (RPM) | Torque Lb-in (Nm) | Power Hp (Watts) | Gear Ratio |
| 26 to 455 | Up to 190 (258) | 1/6 (124) | 6:1 to 98:1 |

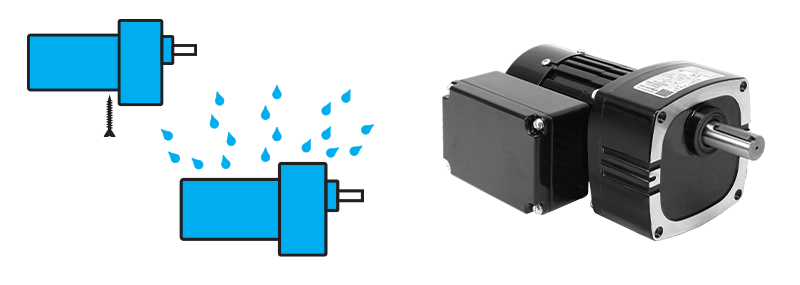

IP-44 CID2 AC
Applications: industrial equipment exposed to splashing water and chemical injection pumps in CID2 hazardous outdoors locations with added protection from rain.
| Speed (RPM) | Torque Lb-in (Nm) | Power Hp (Watts) | Gear Ratio |
| Up to 340 | Up to 350 (40) | 1/6 (124) | 5:1 to 300:1 |

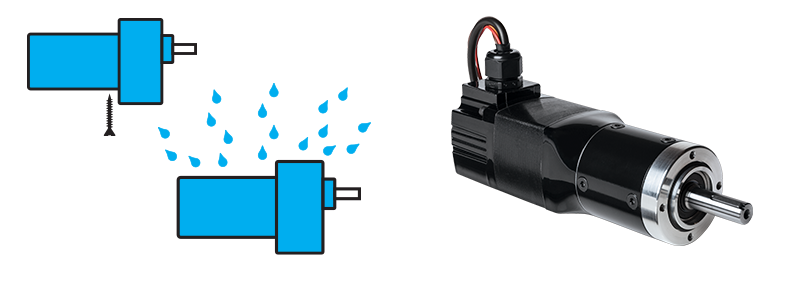

IP-44 BLDC Planetary
Applications: industrial automation exposed to splashing water such as conveyors, pumps, and packaging that require higher torque than conventional helical/spur gearheads.
| Speed (RPM) | Torque Lb-in (Nm) | Power Hp (Watts) | Gear Ratio |
| 15 to 658 | Up to 226 (25.5)) | 1/8 HP (93) | 3.8:1 to 162.1:1 |

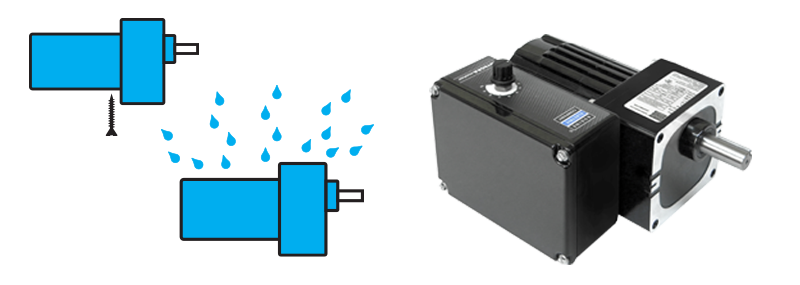

IP-44 BLDC INTEGRAmotor
Applications: industrial automation exposed to splashing water as well as chemical injection pumps in CID2 hazardous locations outdoors with additional protection from rain.
| Speed (RPM) | Torque Lb-in (Nm) | Power Hp (Watts) | Gear Ratio |
| 8 to 658 | Up to 205 (23) | 1/4 (186) | 3.8:1 to 312:1 |
