Bodine Electric Company has upgraded and expanded its Type-CG, variable speed, AC inverter-duty and permanent magnet DC gearmotors. The CG gearmotors are designed for applications such as heavy-duty conveyor systems, medical equipment, food processing and factory automation, where long life and high load capacity are critical.

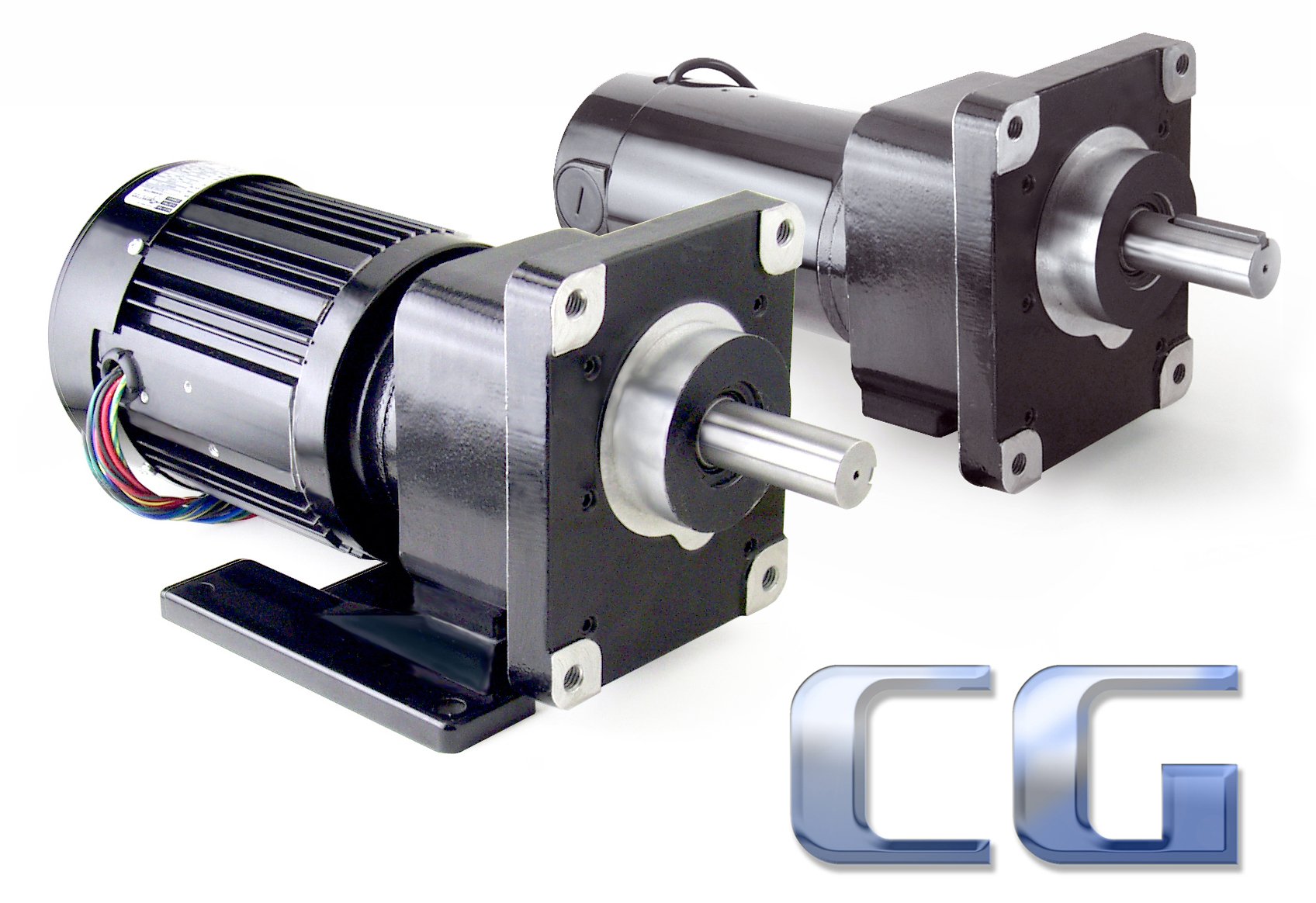

Bodine 48R-CG and 42A-CG High Torque Gearmotor (up to 1000 lb-in)
The CG gearhead is paired with Bodine’s most powerful variable speed electric motors, the 48R6, AC inverter-duty, and 42A7 permanent magnet DC motors. Our integral gearmotor design allows the CG to deliver up to 1,000 lb-in. (113 Nm) of torque, which is nearly twice the torque of any previous Bodine product. The CG gearmotor features an aluminum cast gearhousing. It can be face-mounted in virtually any position, or mounted via an optional base. The extra heavy-duty drive shaft, bearings and seals provide reliable operation and long life. Inside the gearhead three-stage, selectively hardened gearing and high performance lubricant insure quiet operation and high output torque. New DC accessory-ready models can be fitted with encoders, other feedback devices, or brakes.
New Quick Delivery program:
The type “CG” gearmotor models are the first of Bodine’s product line to be available through a new Quick Delivery program. This program is designed to ship customer orders in small order quantities within two to three business days. Products will be maintained in stock, or assembled to order via a quick-turn production cell. Larger order quantities will require lead-time. Expedited delivery options are also available. We are starting this new “QD” program in December 2009, and will add the “accessory ready” CG gearmotor models in January 2010.
Bodine Electric also offers custom engineered CG gearmotor solutions. For qualifying OEMs, we can custom design special mounting and drive shaft features, special windings, or new gear ratios. We recently developed a new 48B-CG, brushless DC (electronically commutated) gearmotor with encoder feedback. This custom 48B-CG gearmotor features a low-voltage, 24 VDC winding that is powered by a 24 VDC Bodine type ABL control. For information on custom solutions from Bodine Electric Company, minimum order quantities, prices and lead times, please contact your local Bodine sales manager.
Download Brochure (PDF)
Explore 48R-CG AC Inverter Duty Gearmotors
